Runleader TS015 Engine Temp Sensor with RPM Signal Cable,Temp Range: -20℃ to 220℃(-4℉ to 428℉),Waterproof Design for Lawn Mower Generator Motorcycle ATV etc.

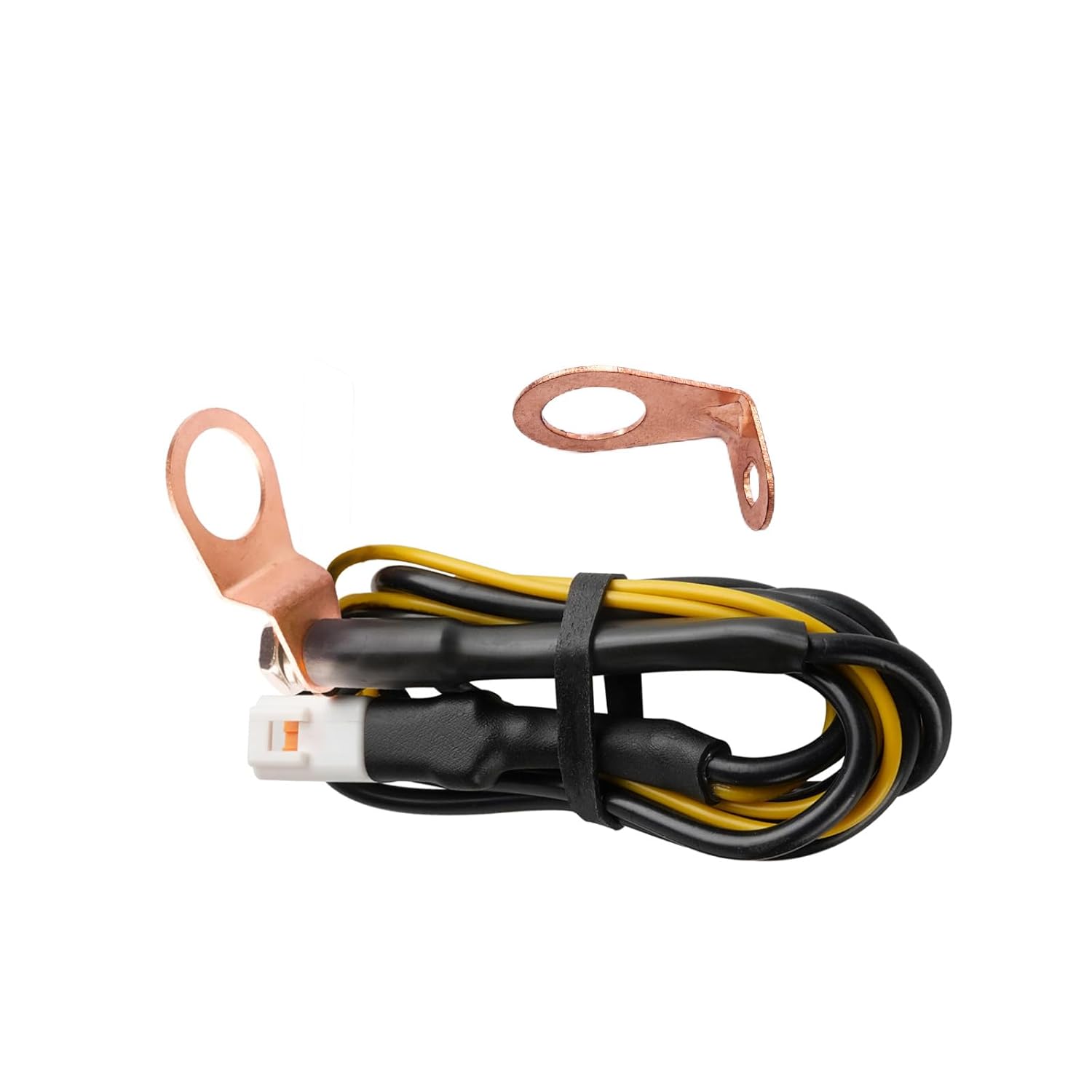

TEMP/RPM CABLE ASSEMBLY---- It is an assembly contains engine temperature sensor TS002-1(red copper) and RPM inductive wire(yellow); The temp sensor is easy replaced.

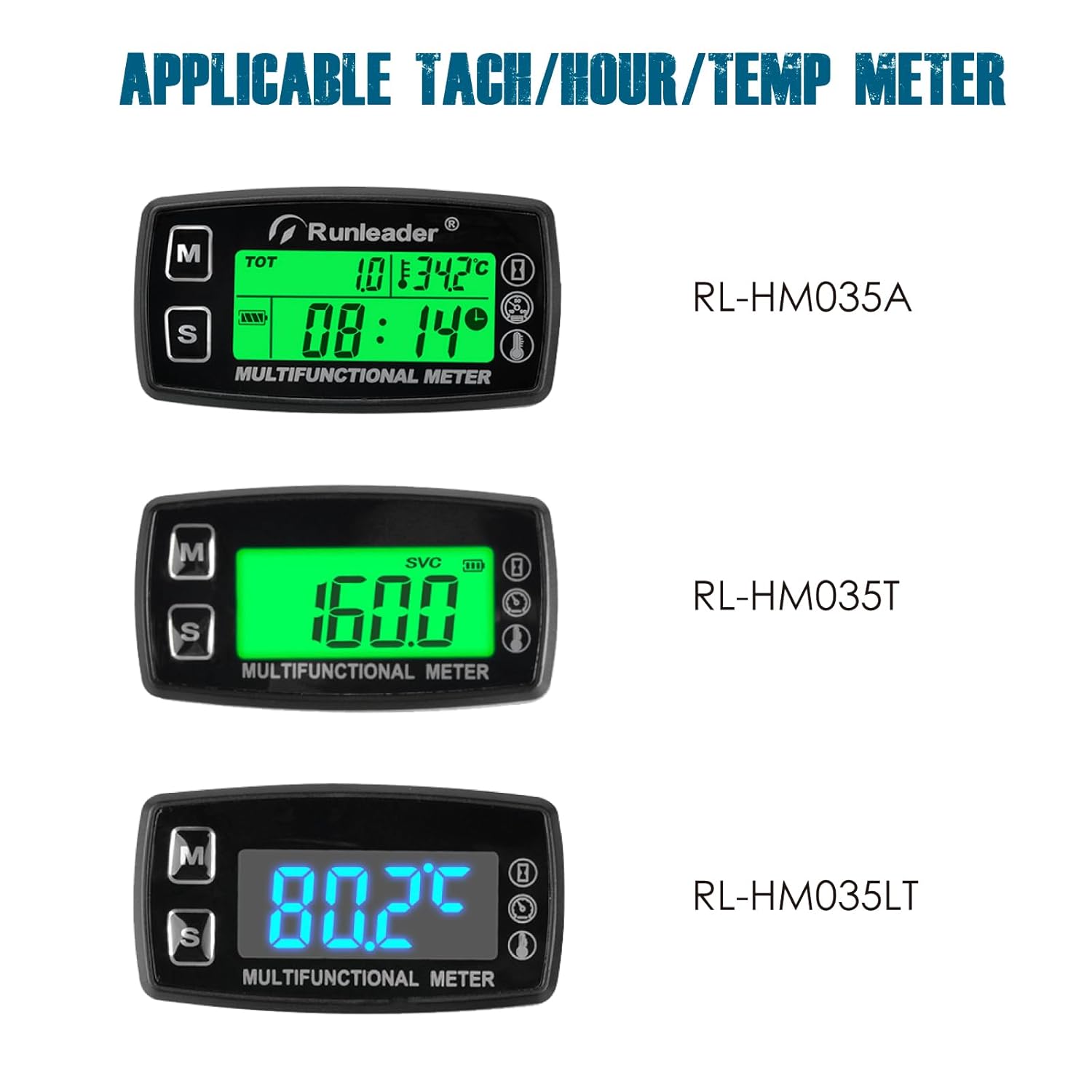

APPLICABLE ITEMS OF RUNLEADER ---- HM035A/HM035T/HM035LT

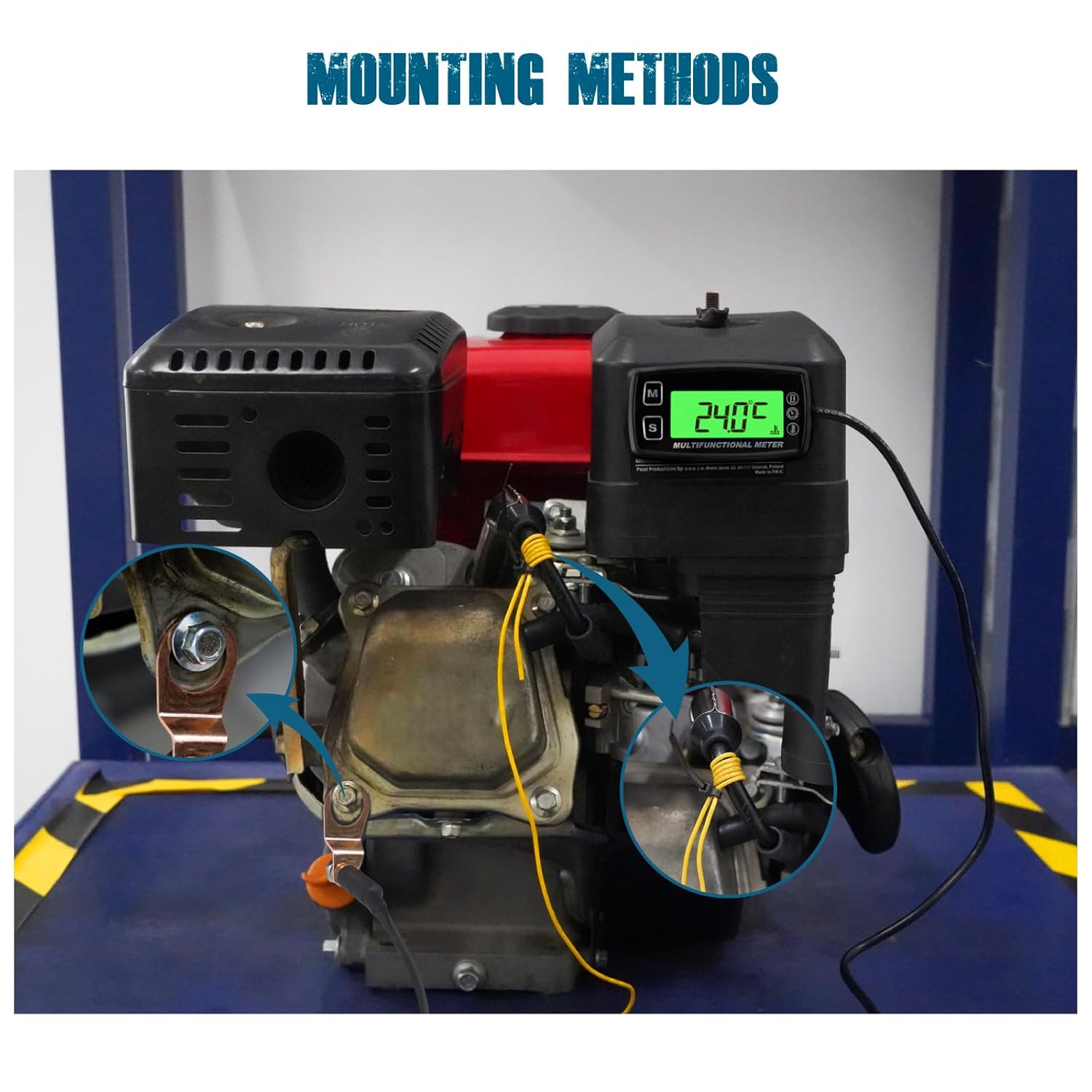

EASY TO MOUNT ---- You can put it on screw nut or go the spark plug through the sensor ring to get the temperature value; Wrap the yellow wire to get the engine RPM value.
DIMENSIONS ---- Total length of cable:black/2000.00mm(approx. 78.74 inches),yellow/2000.00mm(approx.78.74 inches); Temperature sensor size: 39.37mm*10.00mm,φ14.00mm(approx.1.55 inches*0.39 inch, φ0.55 inch)
OTHER FEATURES ----Reliable after-sales service and technical supports(2 years).
