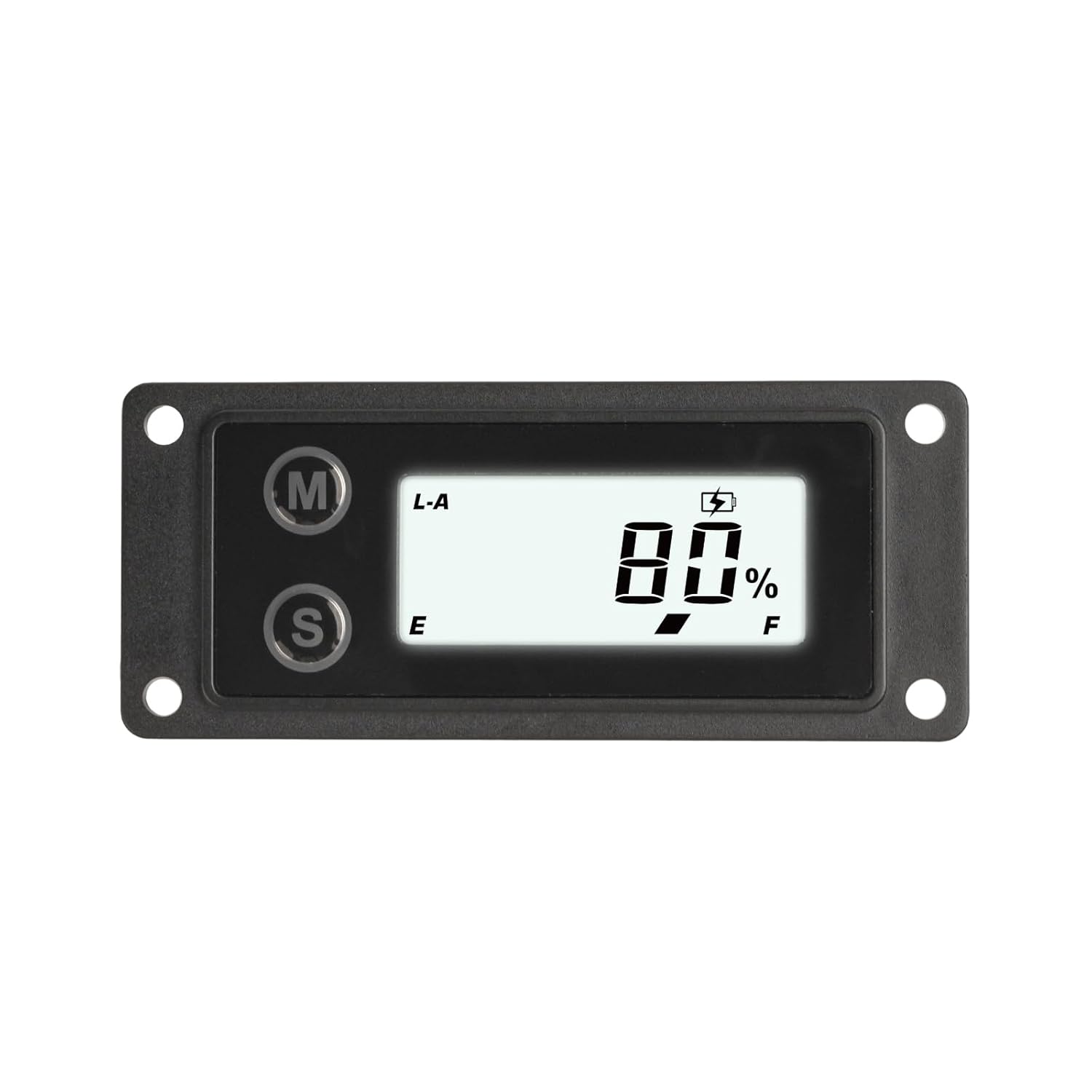

    Runleader RL-BI609A Digital Battery Indicator, Volt. DC12V to 48V, Waterproof Design & Backlight Display.

    Runleader RL-BI609A Digital Battery Indicator, Volt. DC12V to 48V, Waterproof Design & Backlight Display.

    $21.59 USD
    $21.59 USD
    Sale Sold out

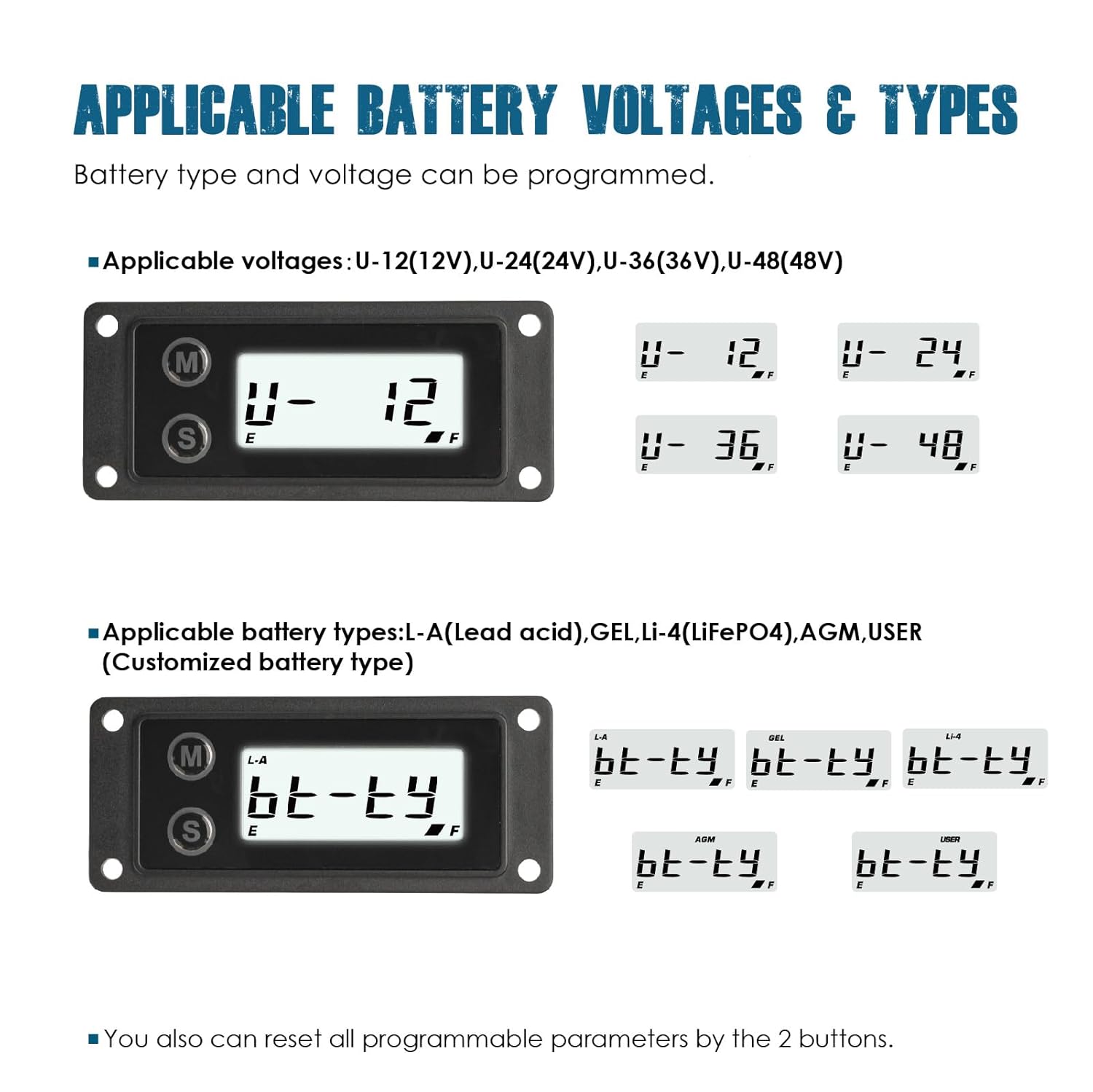

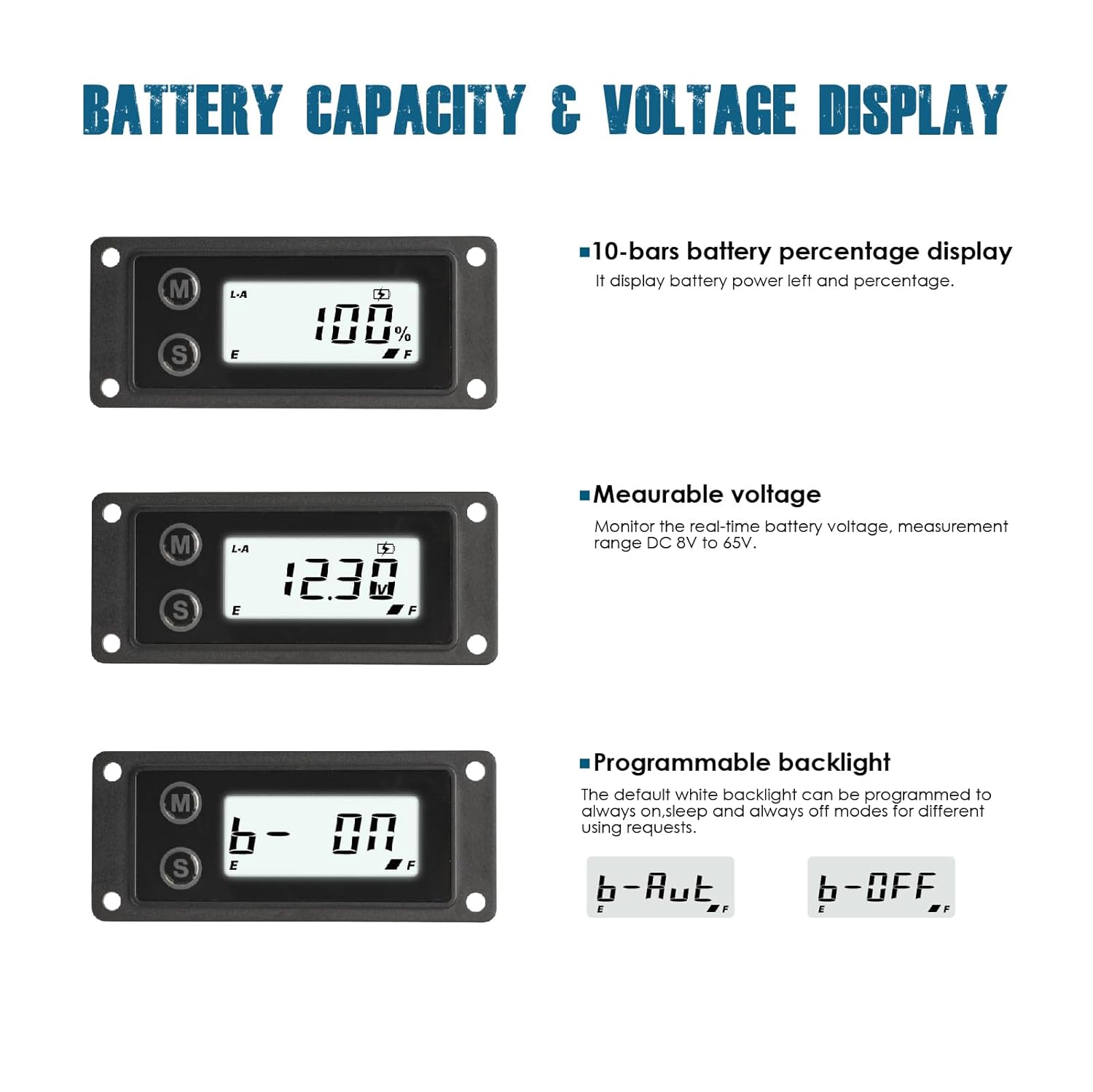

    • BATTERY POWER METER ---- It display how much battery power have left by 10 prgress bars and percentage value; Applicable battery types selection: Lead Acid,GEL,AGM,LiFePO4 and one customized battery parameters; Applicable battery voltages can be selected: DC12V,24V,36V,48V.

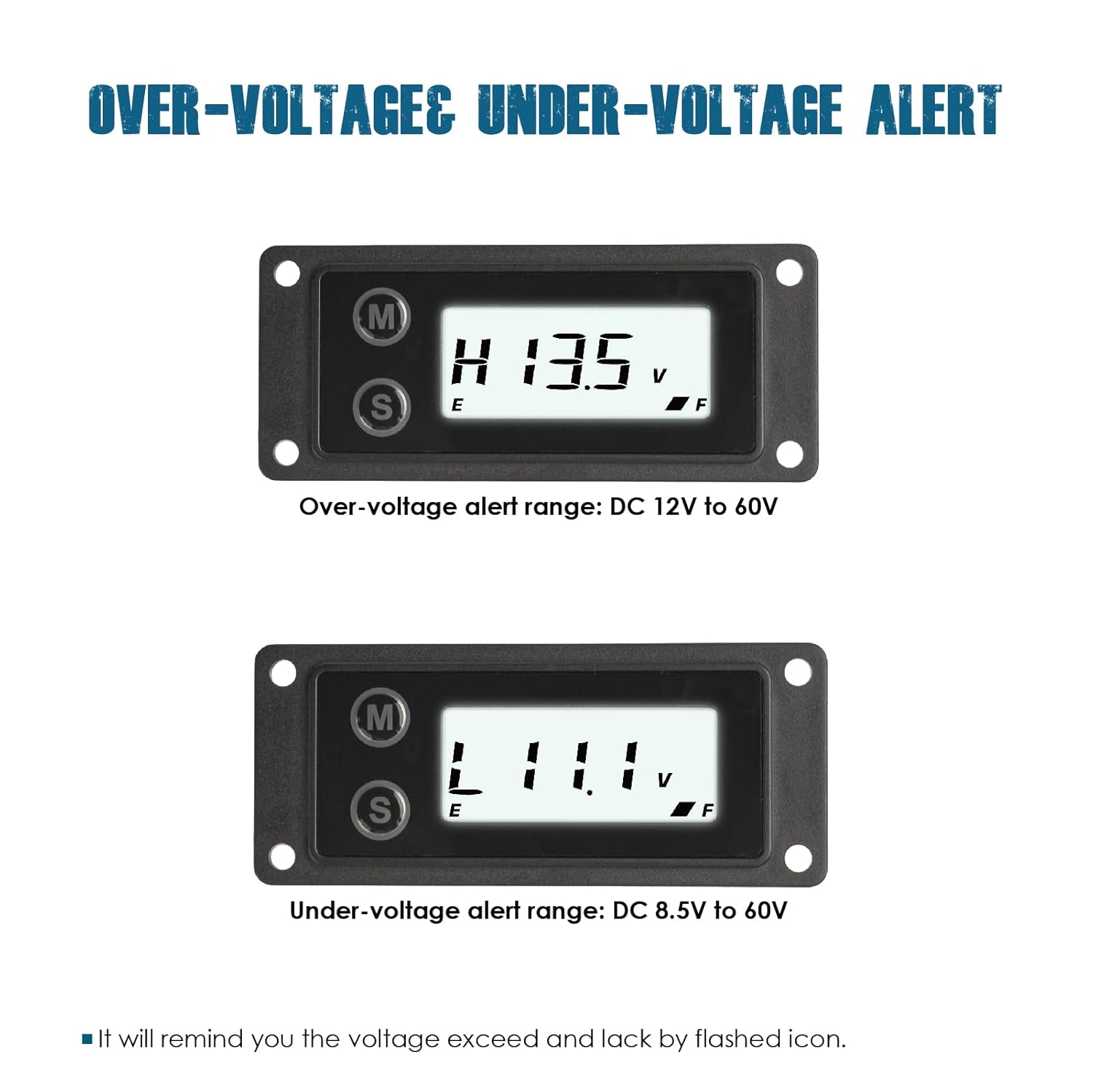

    • BATTERY VOLTAGE GAUGE ---- It display the battery real-time voltage once it is connected; User also can set the limited alert value to remind the high or low voltage status. Battery voltage measurement range: DC 8V to 65V.

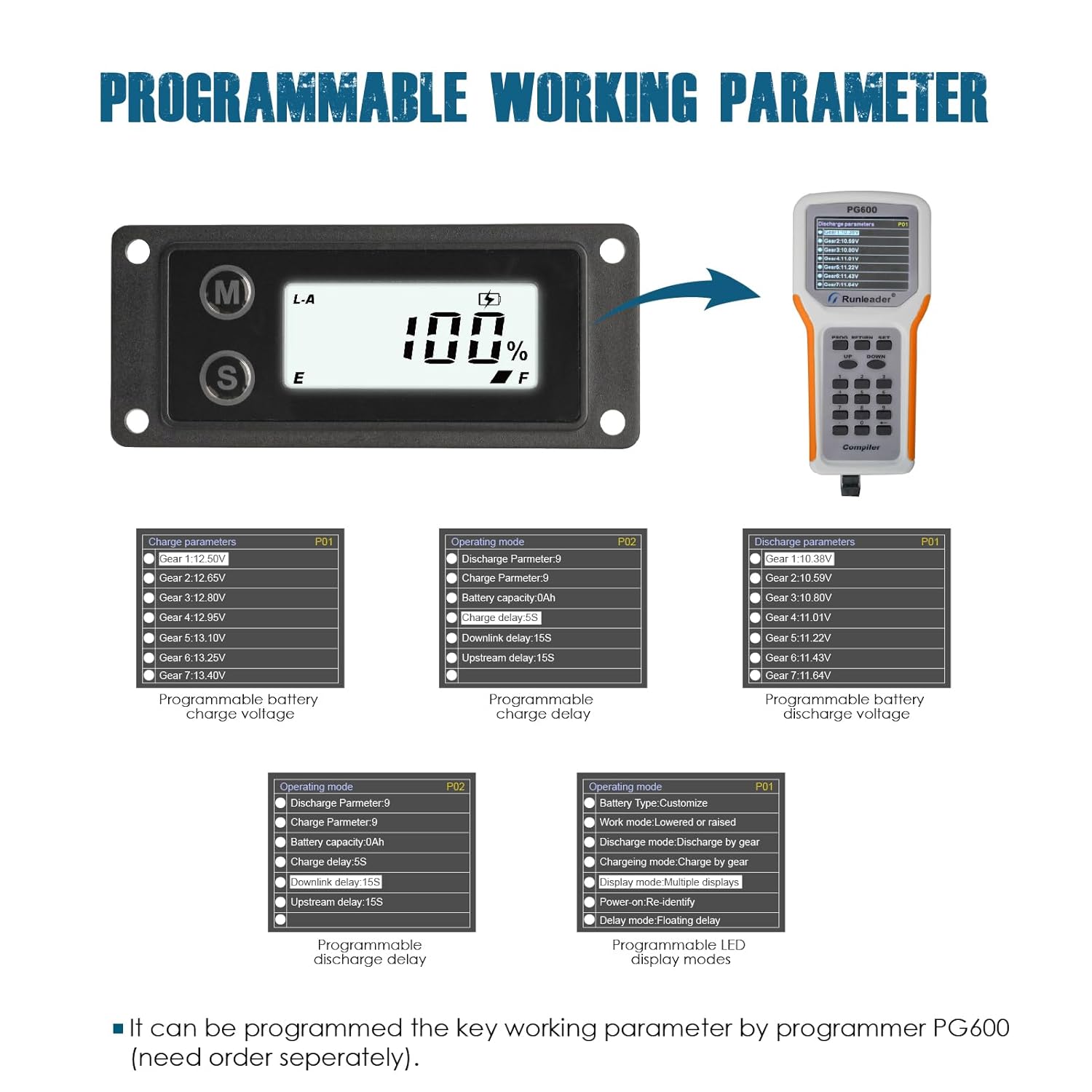

    • PROGRAMMABLE PARAMETERS ---- User can edit the key parameters such as battery types,discharge and charge voltages etc. by Runleader's programmer type PG600(need to order seperately). Programmable communication method: CAN 250K.

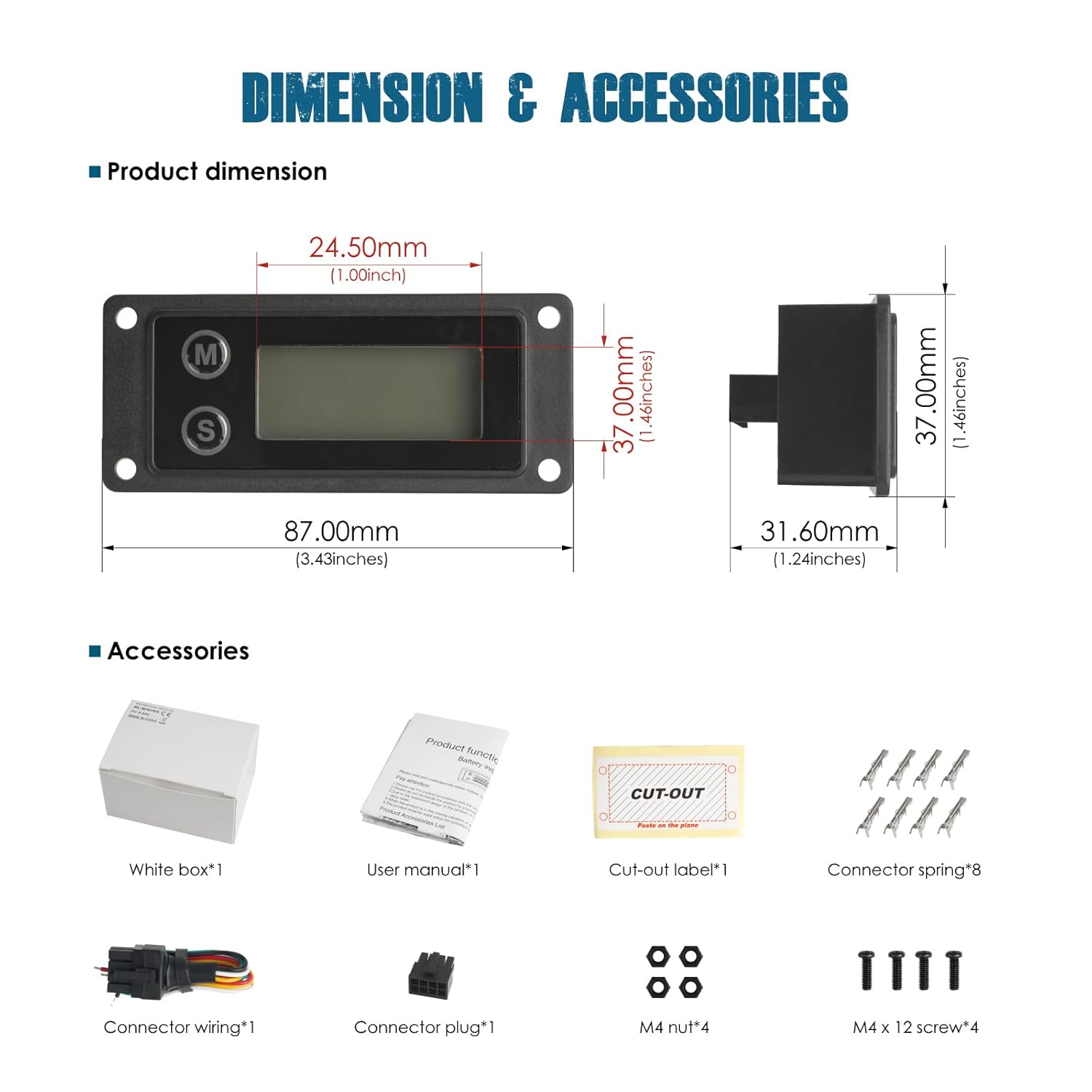

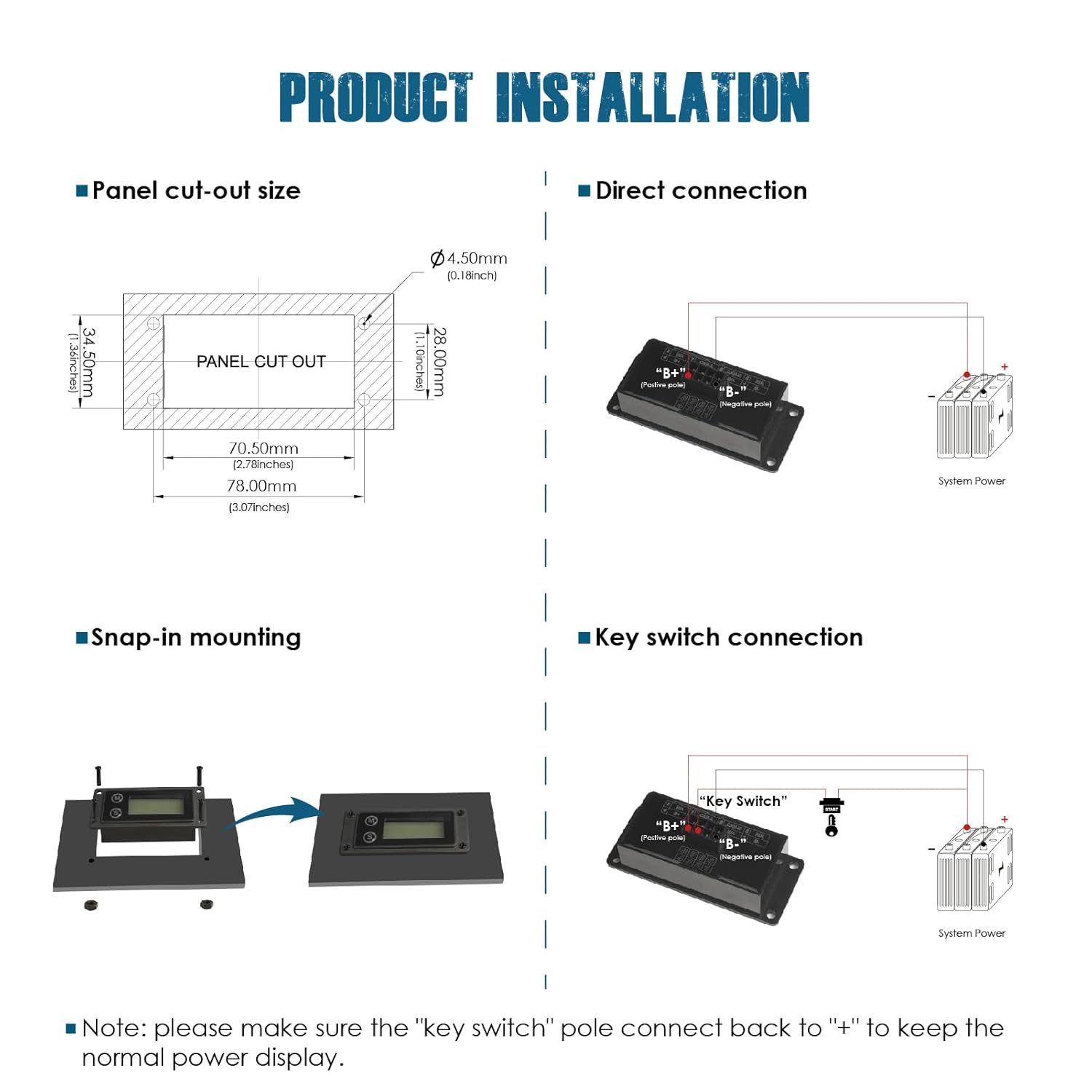

    • INSTALLATION ---- Easy to mount it at any proper place by snap-in pannel cut-out size: 70.5x34.5mm(2.78x1.36 inches);Connect the ports of positive(+) and negative (-) with battery for power on, and link the “key switch” port with positive(+) as a key for normal battery power display and monitor.

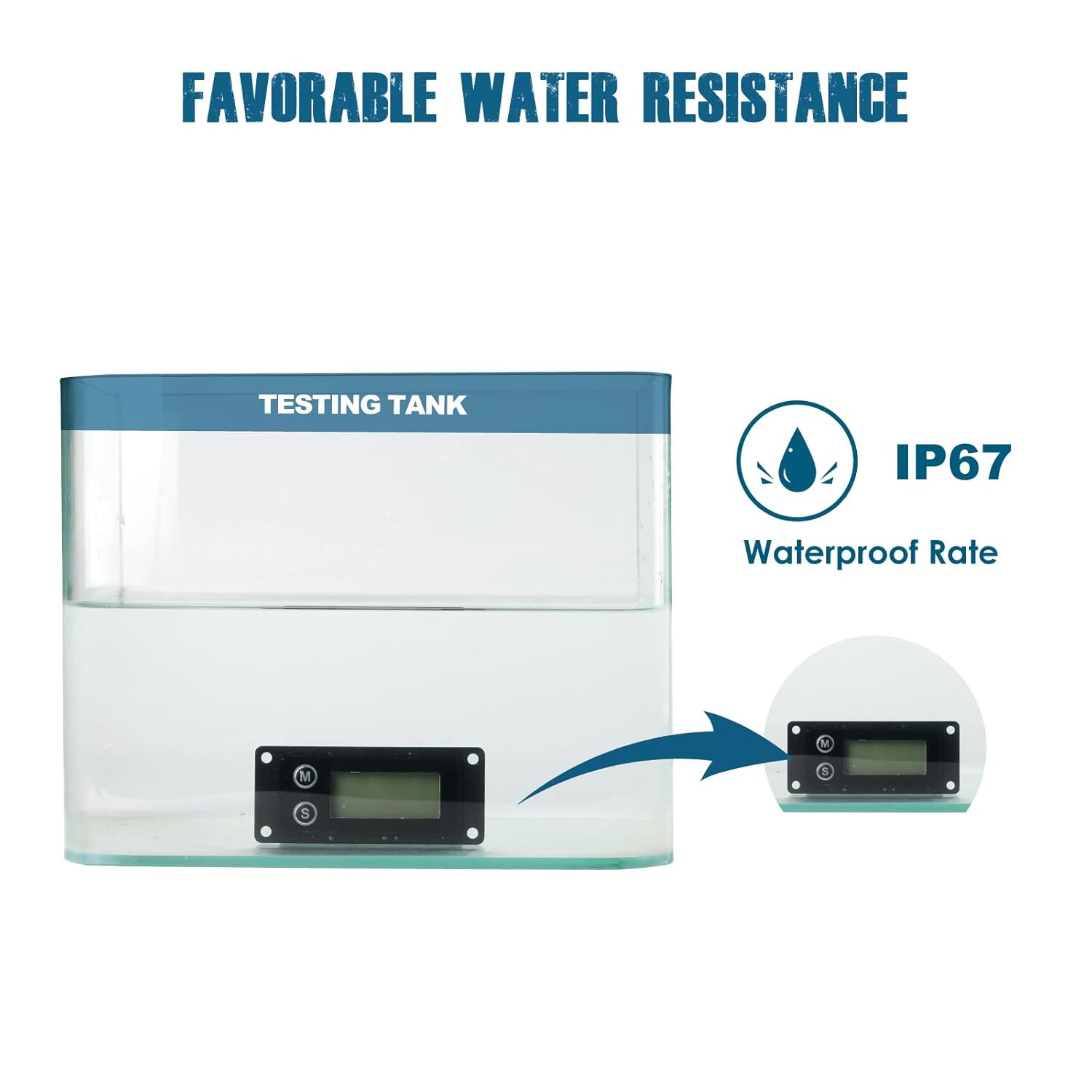

    • OTHER FEATURES---- 100% epoxy resin craft by water resistance up to IP67;White backlight modes: always on/off and auto; Discharge delay time setting; Charging voltage setting;Excellent after-sales and technical support.
