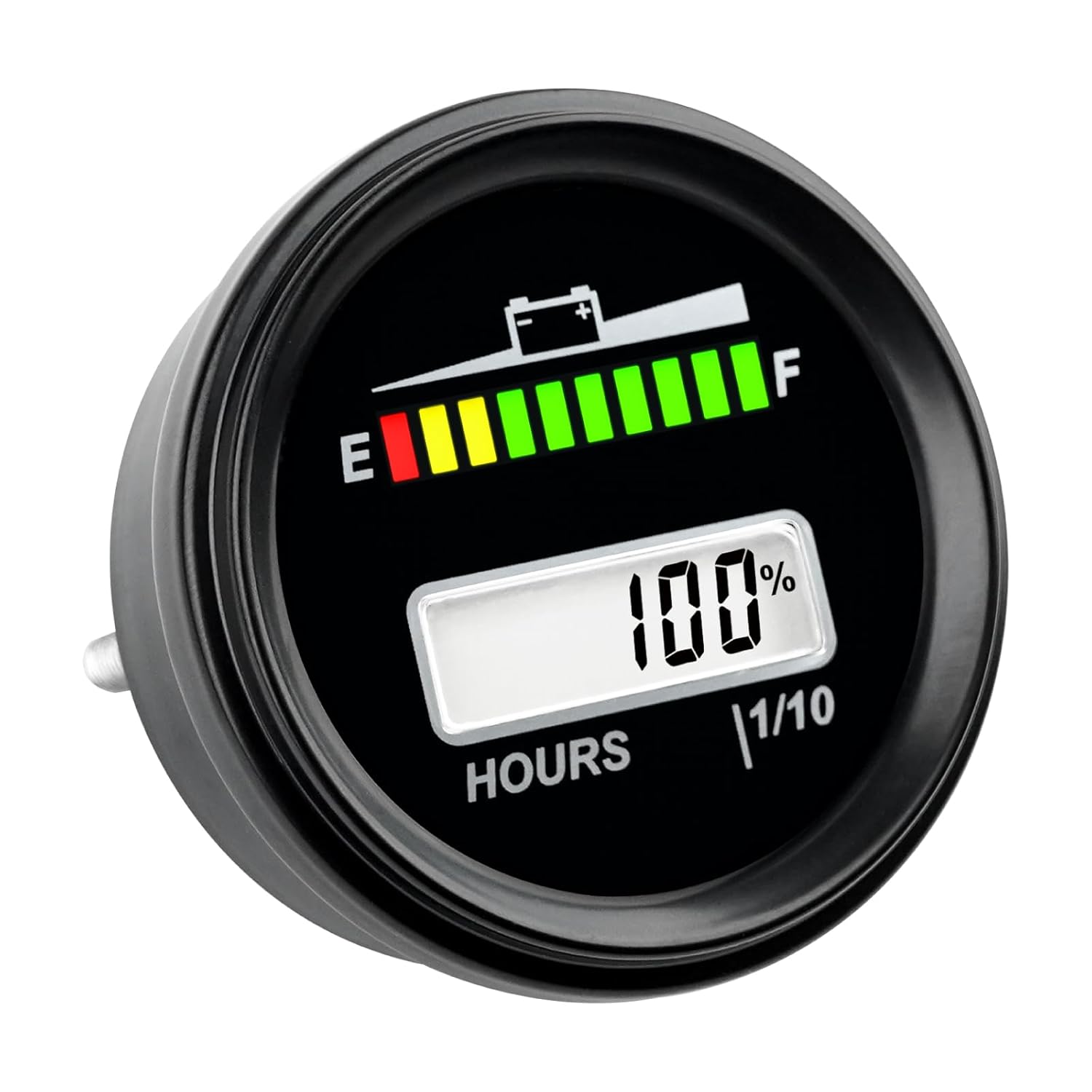

    Runleader RL-BI069A DC12V 24V 36V 48V Mini Battery Indicator Volt Meter for Lead Acid LiFePO4 Lithium Battery Powered Golf Cart Forklift Lawn Mower Scrubber Machine Motorhome etc.

    Runleader RL-BI069A DC12V 24V 36V 48V Mini Battery Indicator Volt Meter for Lead Acid LiFePO4 Lithium Battery Powered Golf Cart Forklift Lawn Mower Scrubber Machine Motorhome etc.

    $23.99 USD
    $23.99 USD
    Sale Sold out

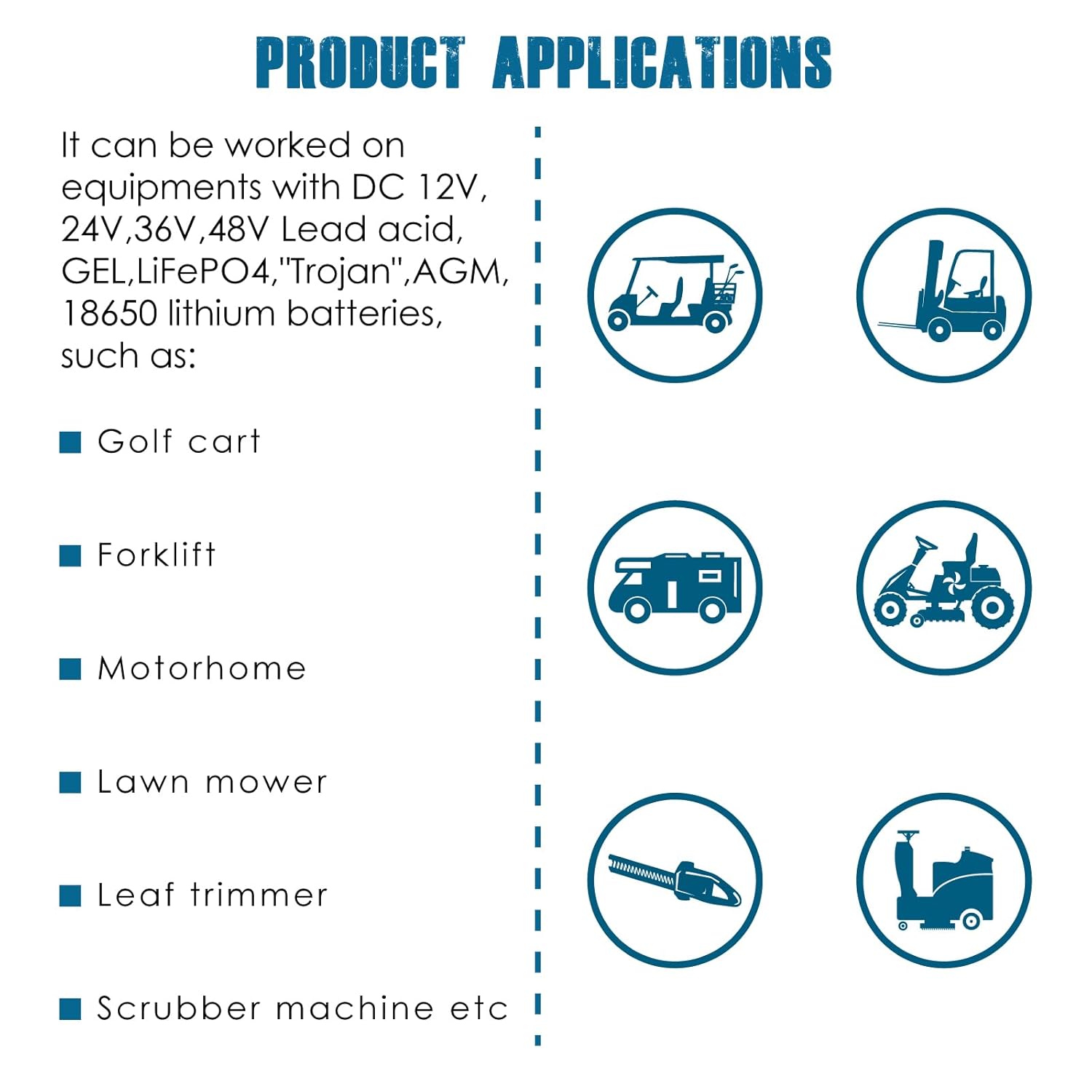

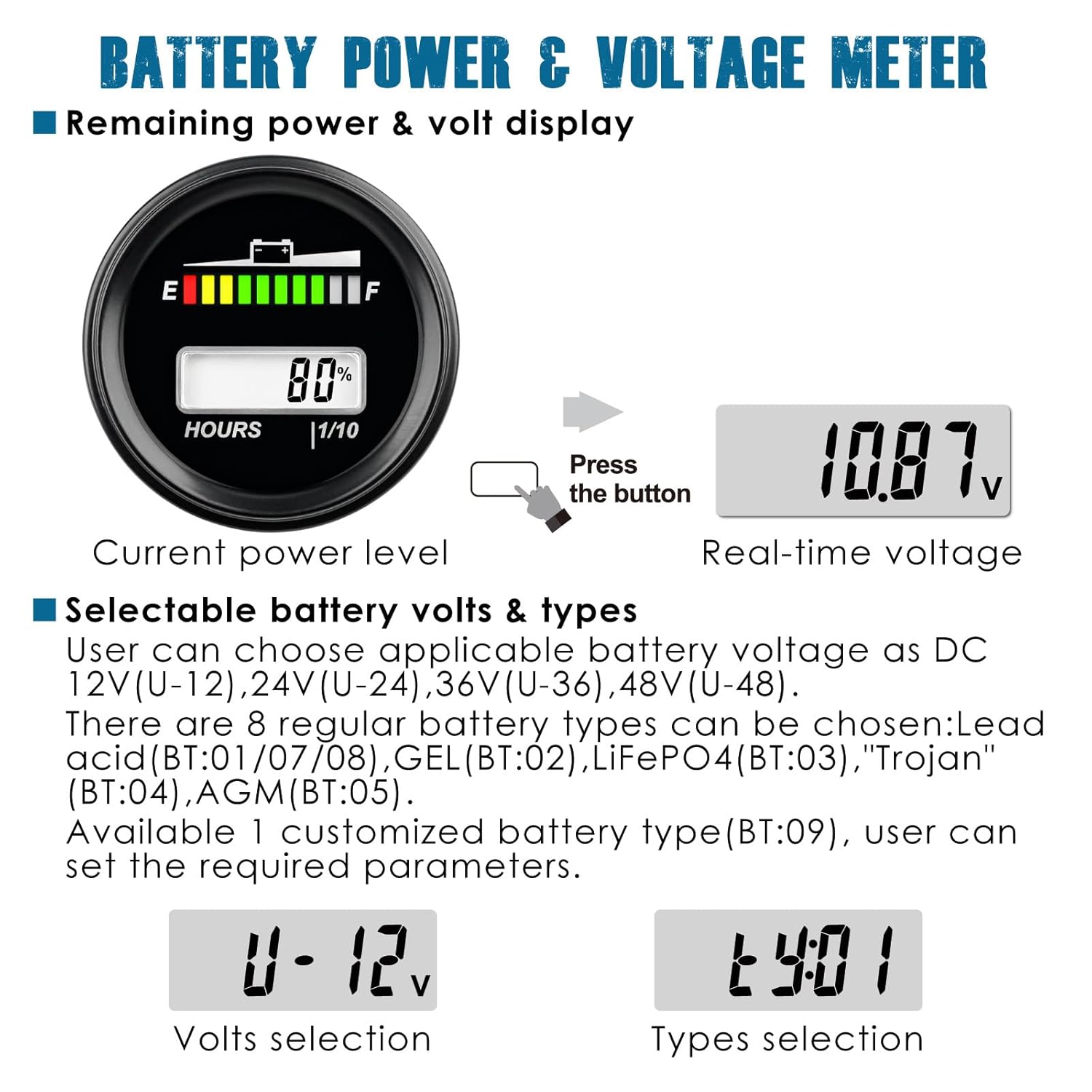

    • BATTERY POWER METER ---- User can view how much battery have left(LED bars & percentage value) and battery real-time voltage by button when measured battery is connected; It is applicable to DC 12V,24V,36V,48V Lead acid GEL LiFePO4 "Trojan" AGM 18650 Lithium batteries, user can select their requirement easily. Battery voltage measurement range: DC 8V to 80V.

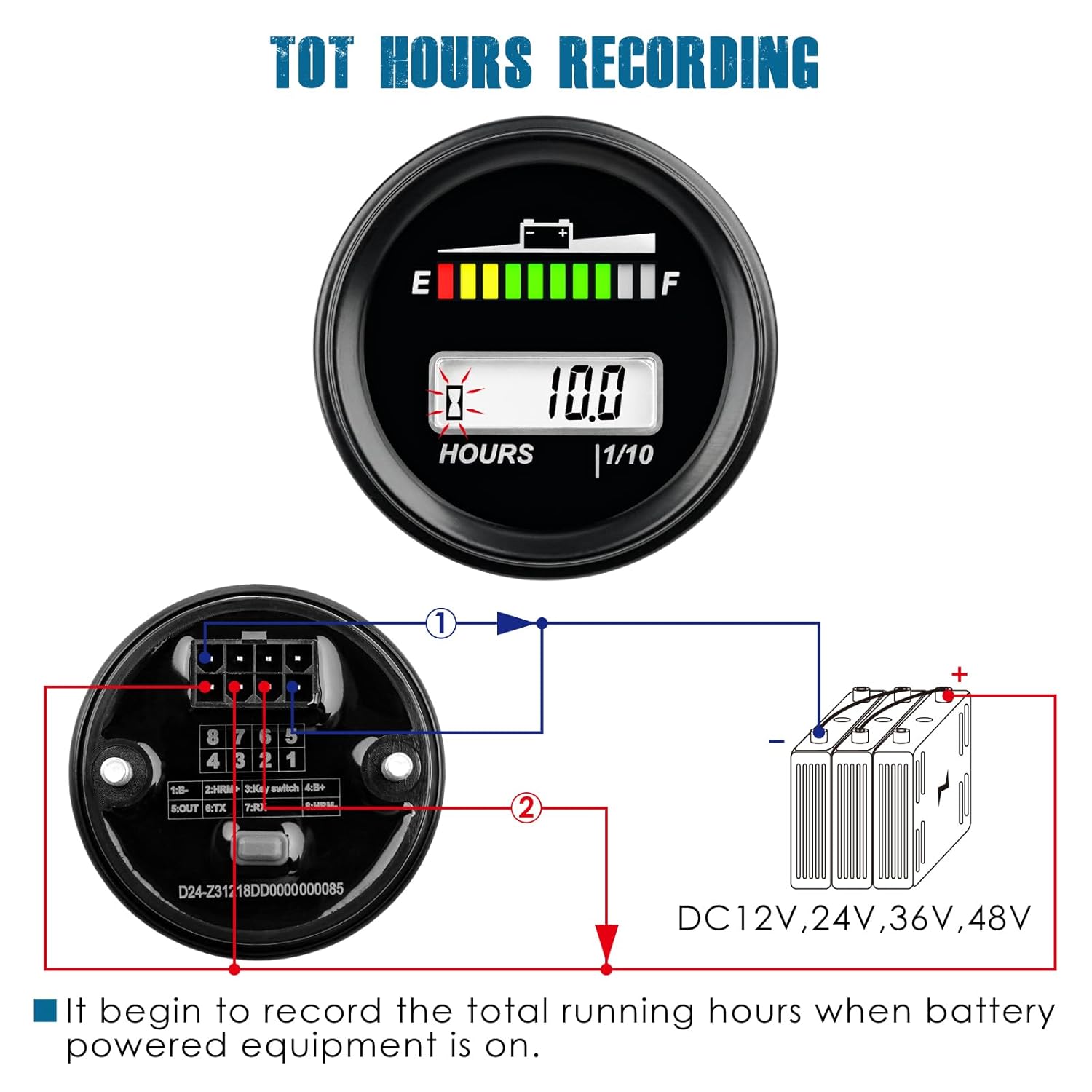

    • WORKING HOURS TRACKING ---- This gauge will begin to track the total hours when battery powered equipment is on. Hours measurement range: 0 to 99,999 hours.

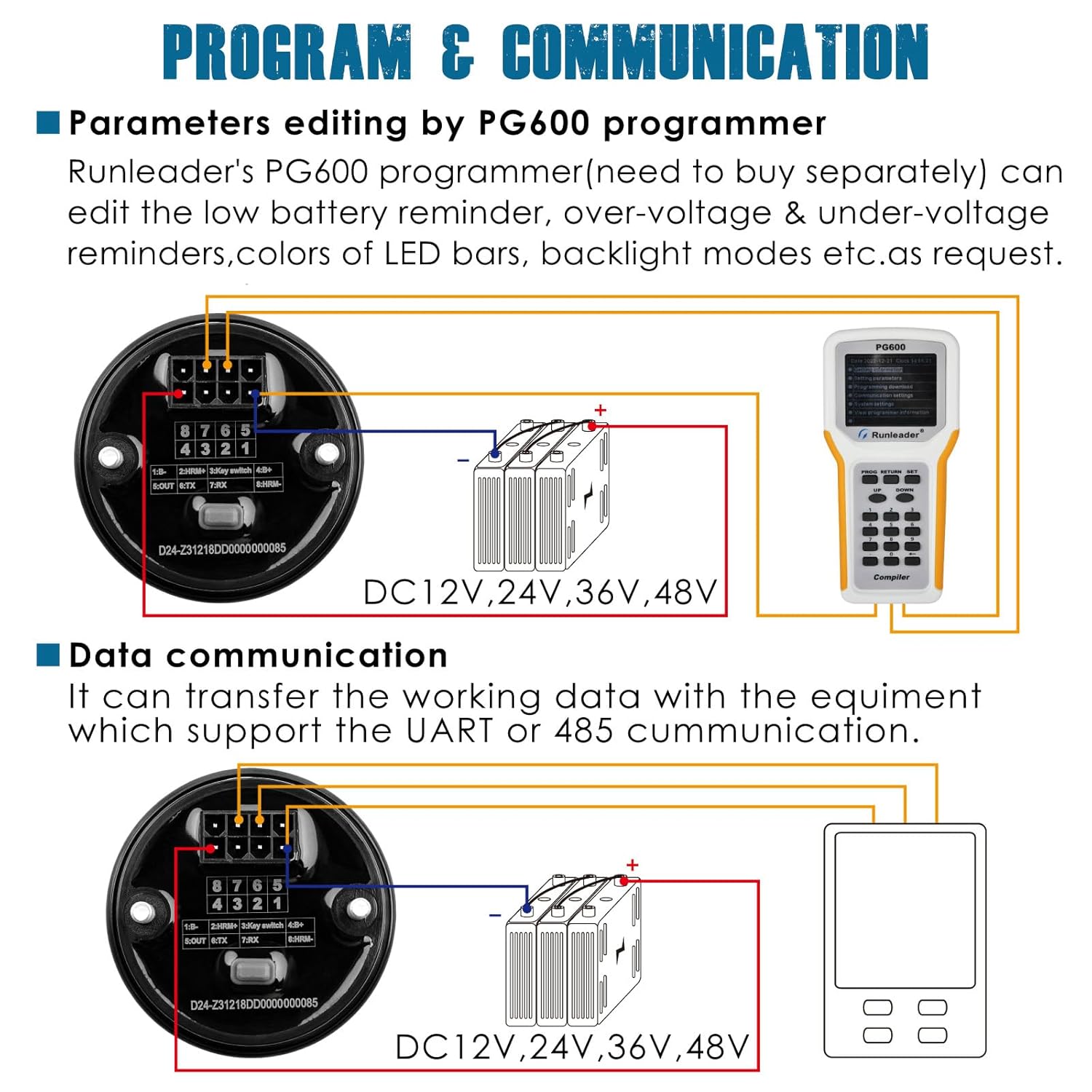

    • PROGRAM & COMMUNICATION ---- User can program some working parameters by Runleader's PG600 programmer(it need to order seperately), such as low battery reminder, over-voltage & under-voltage reminders,colors of LED bars, backlight modes etc.; It can transfer the working data with the equiment which support the UART or 485 cummunication.

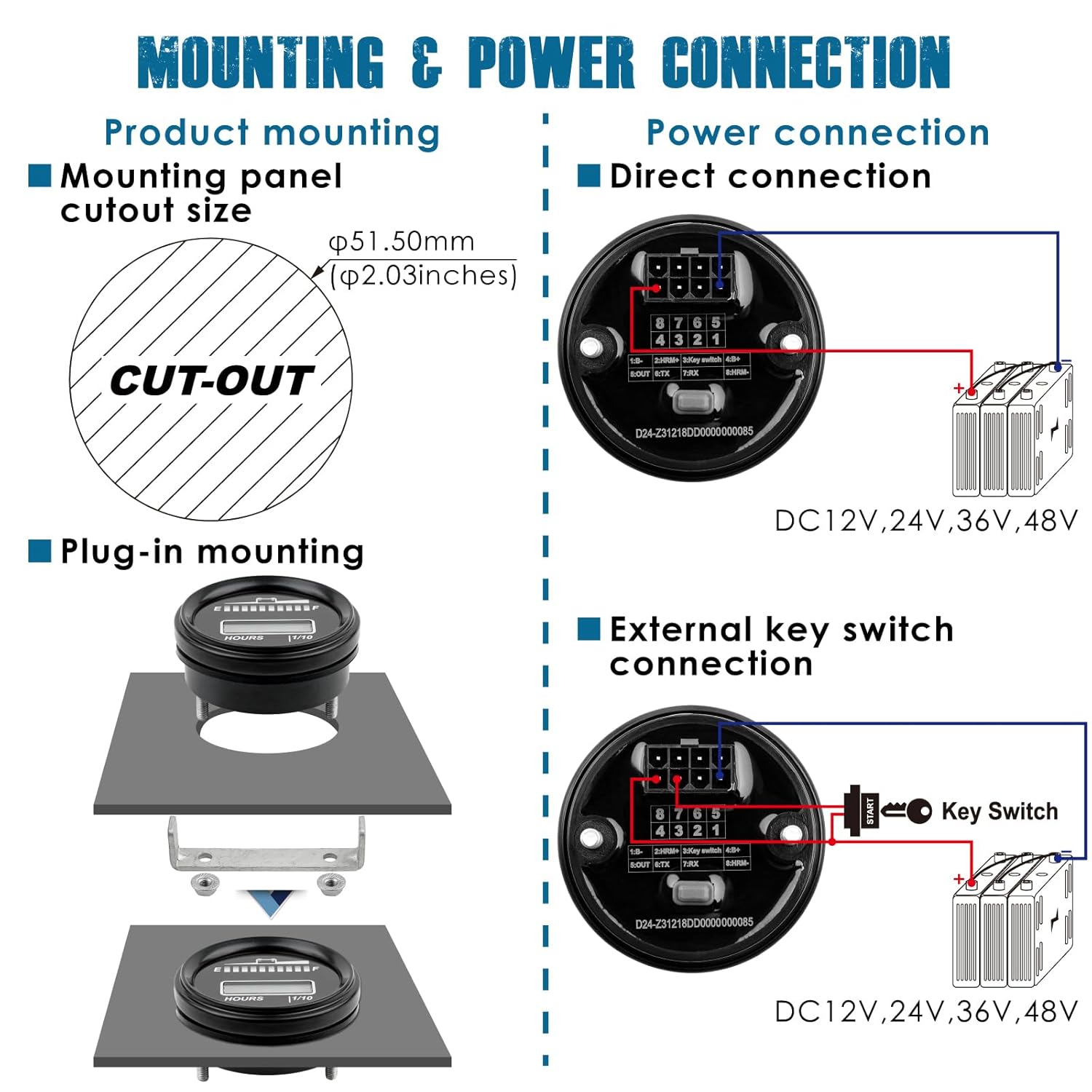

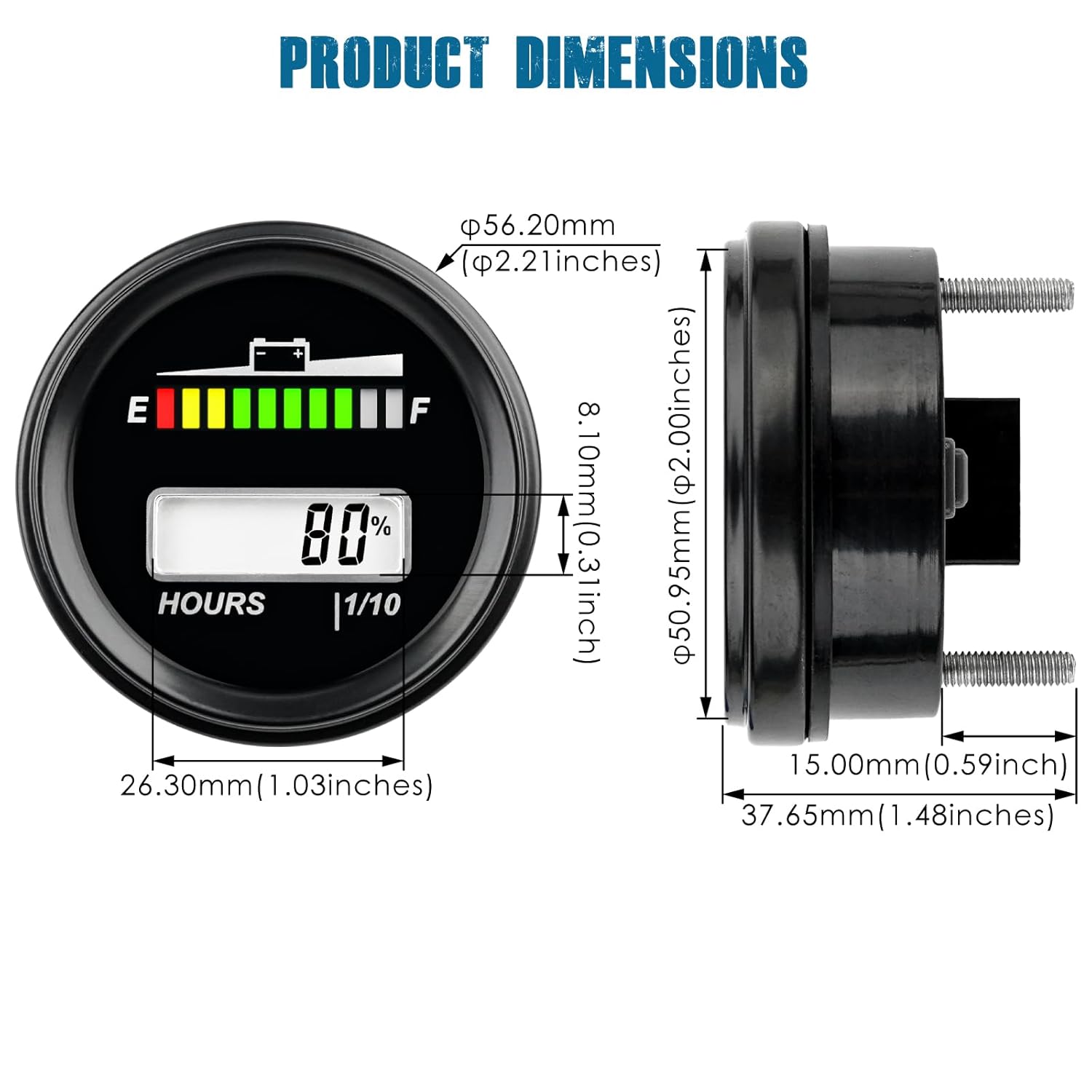

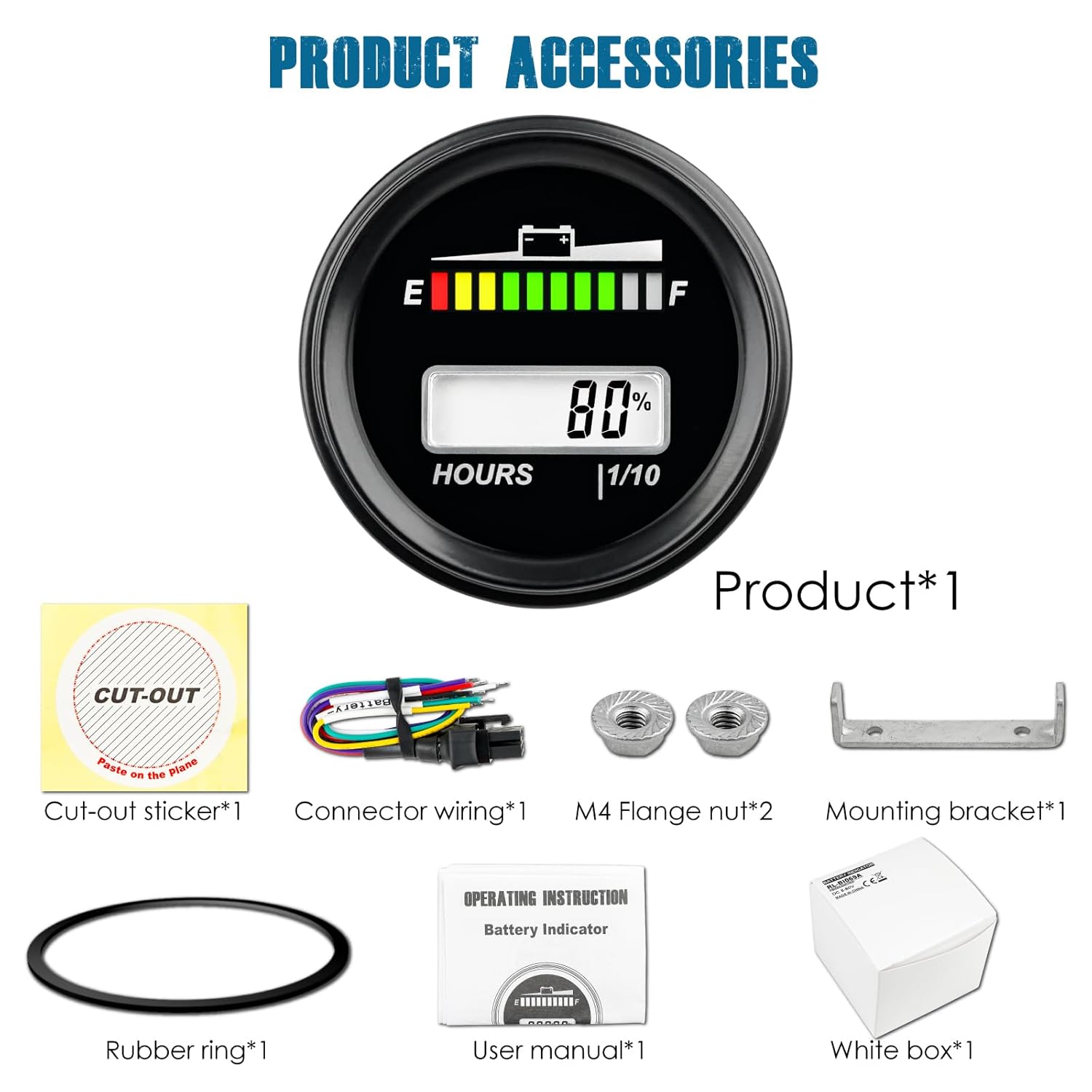

    • PRODUCT INSTALLATION ---- Easy to mount it by drill-in and plug-in, the panel cutout size: φ51.50mm(φ2.03 inches); Connect the "+" and "-" poles by 8-hole connector assembly to enable the gauge to run, and connect the "HMR+" or "HMR-" pole to activate the hour meter function.

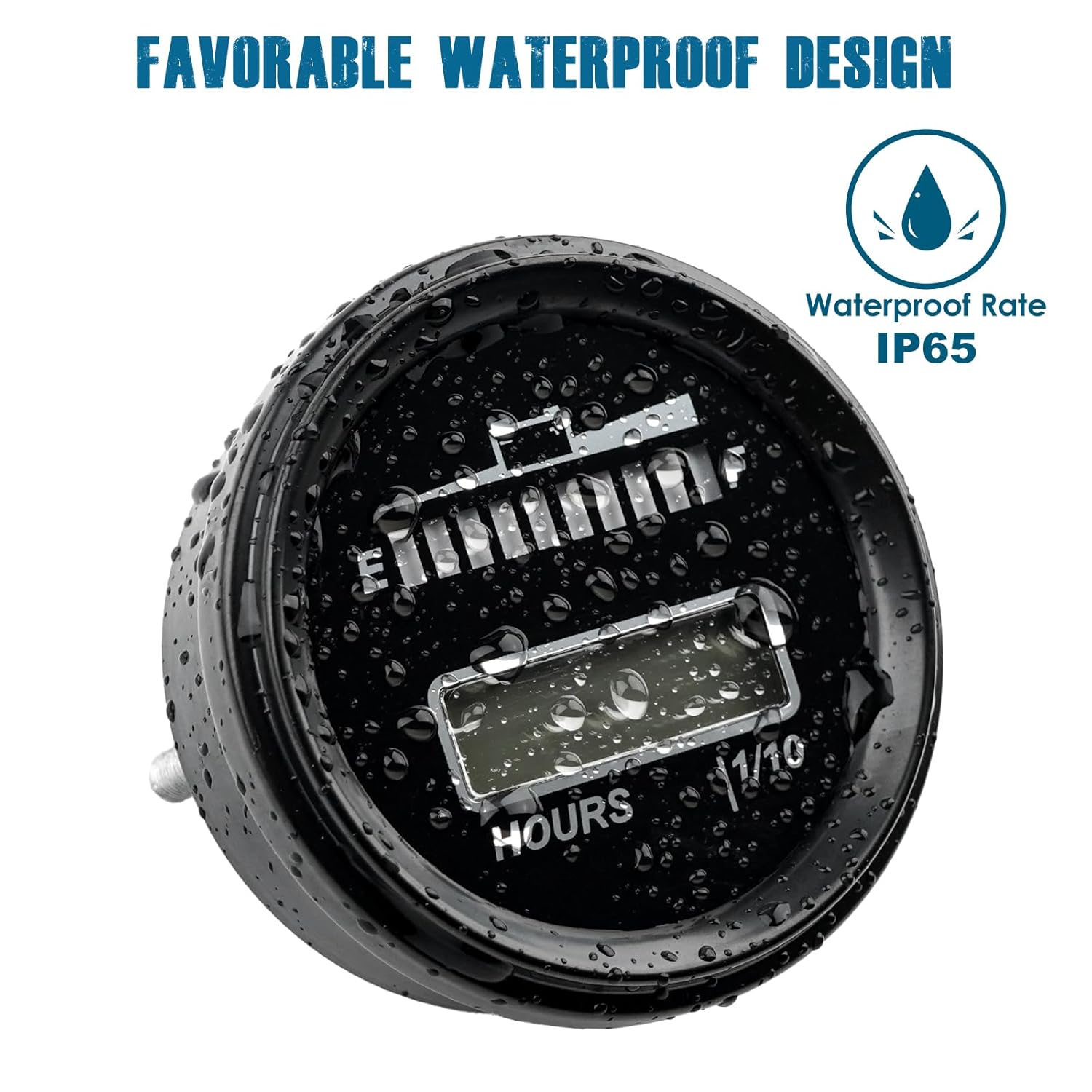

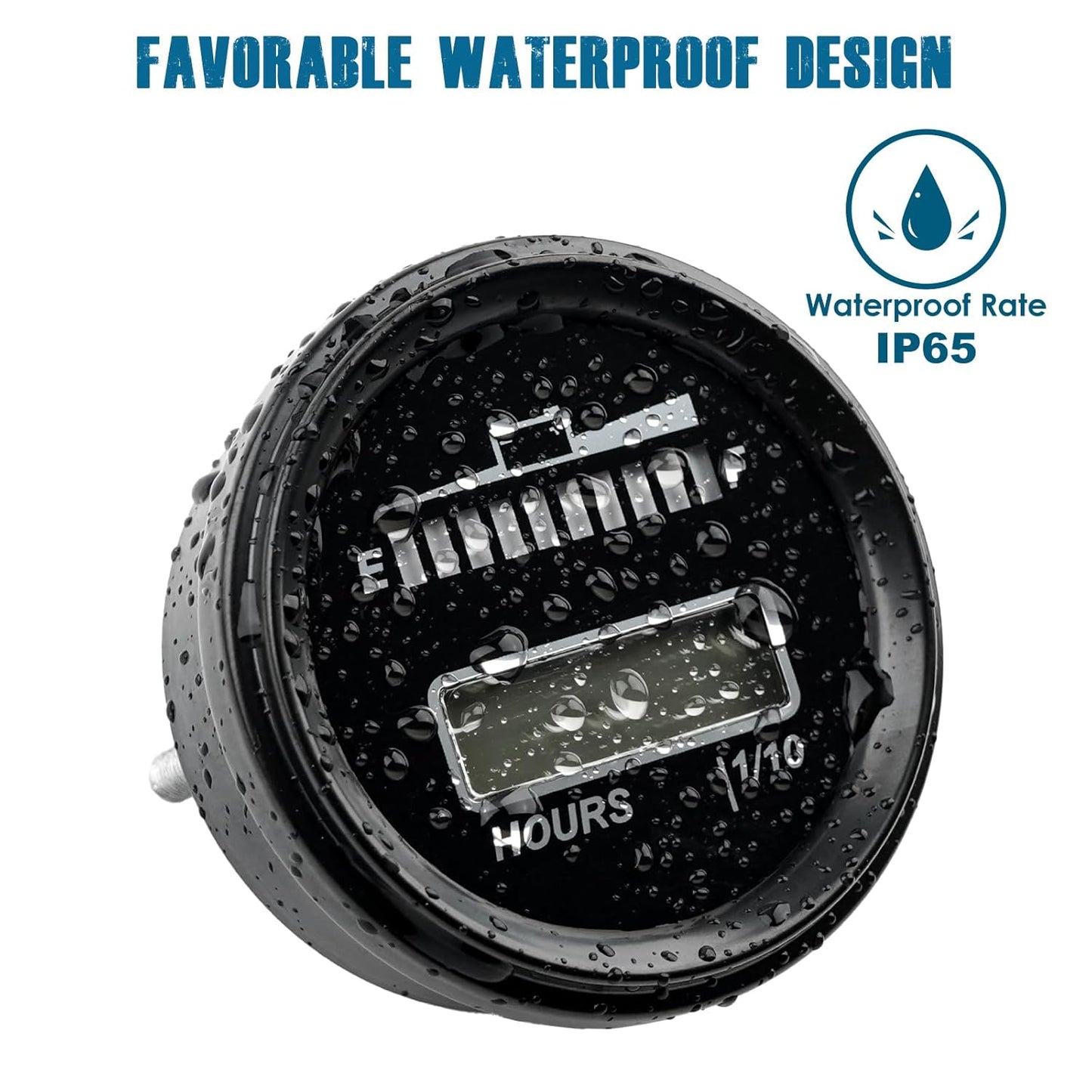

    • OTHER FEATURES ---- Voltage output function;Firmware updated;Favorable water resistance up to IP65.
