PROGRAMMABLE BATTERY METER ---- This kind of battery capacity meter can be modified the key working parameter such as battery types,discharge and charge voltages by our extra new self-developed communication programmer type PG600(need to order seperately); It is made in 100% epoxy resin craft and equipped by PC545 for housing and display window,therefore owned the favorable water resistance up to IP68.

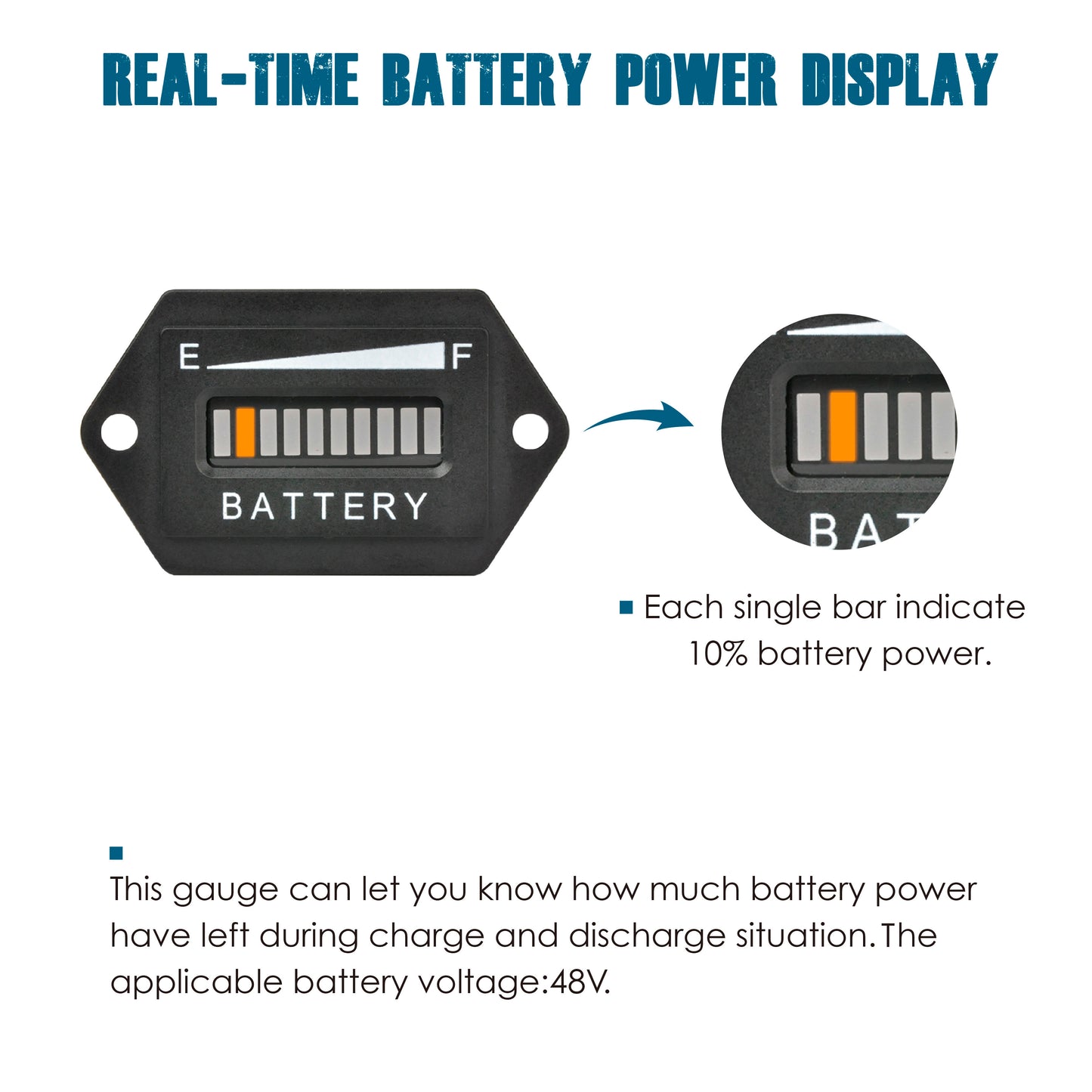

LED BARS DISPLAY ---- 10 LED bar with 3 colors display the currrent battery power percentage and charge/discharge status(each bar indicate 10% power), you also can switch the display mode from single bar display to multiple bars display by PG600 programmer; Charge and discharge display type: step-by-step.QICE
MULTIPLE BATTERY APPLICATION ---- This kind of battery capacity meter is suitable to Lead Acid battery by default,however you also can modify the request battery types through programmer PG600, such as Trojan,LiFePO4,AGM, GEL,18650 Lithium,Lithium cobaltate,Lithium phosphate and one of user customized battery type.
INSTALLATION ---- Easy to mount it at any proper place by snap-in pannel cut-out size: 36x24mm(1.42x0.94 inches);Connect the positive(+) and negative (-) with battery for power on, and link the “C” pole with positive(+) as a key for normal battery power display and monitor.
OTHER FEATURES ---- Colors of LED bar:1 red 2 yellows 7 greens;Well-compeleted accessories;Excellent after-sales and technical support(2 years warranty).
