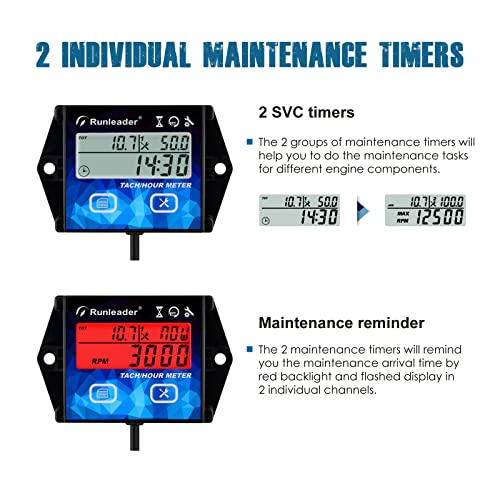

HOURS ---- Record the total using time (TOT) and the hours per trip (JOB) of your engine, the previous hours (INT) can be set for a replacement; Keep track the service intervals for maintenance schedule such as oil change etc.(SVC); TOT & JOB hours read up to 999,99 hours; SVC timer range: 5-2000 hours .

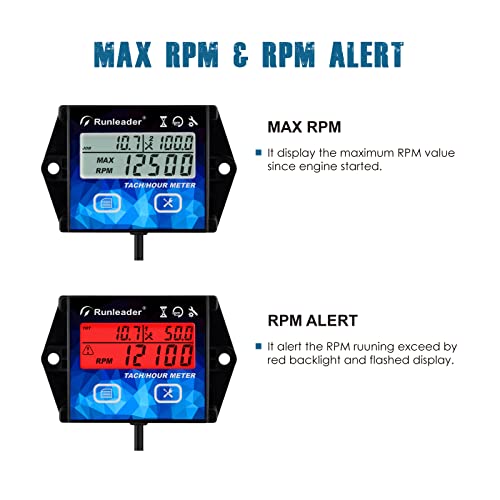

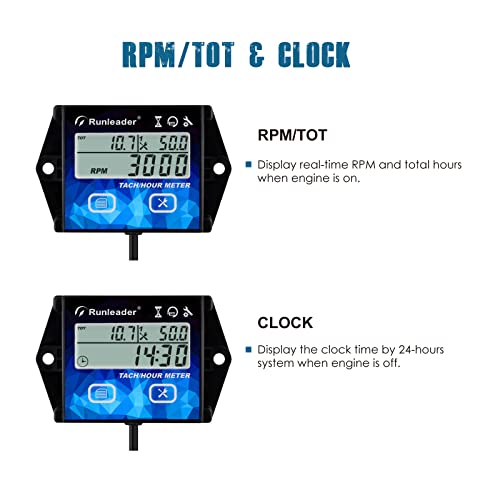

RPM ---- Display the rotation speed of engine (RPM) to adjust the idle, chose the proper engine firing patterns for accurate reads; Alert channel for revolution exceed reminder; Viewable highest revolution since the engine started; RPM measurement range: 0-25000RPM, Alert range: 100-25000 RPM.
DISPLAY ---- White backlight can be lighten then easy to read at night or dim working condition, red backlight will be flashed to remind the maintenance time arrival and RPM exceed; 3 seperate display area will help you to check and program different functions more easily.

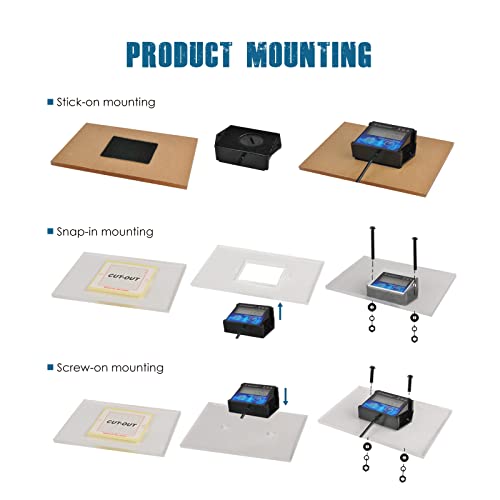

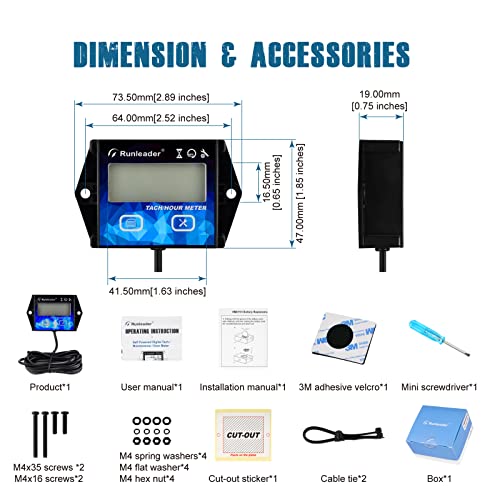

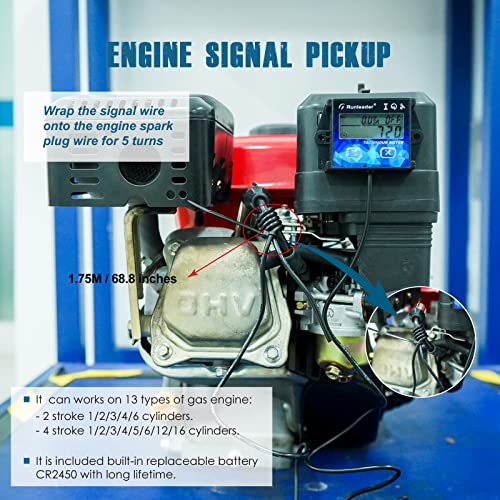

INSTALLTION ---- You can mount it by screw-on, stick-on and snap-in (Panel cut-out size: 2.08x1.57 inches) at any proper position, well-compeleted accessories will keep it fit for different using requirement; One wire hook-up design for engine signal detection with wire shorten or extend( wire length:appox.68.8 inches).

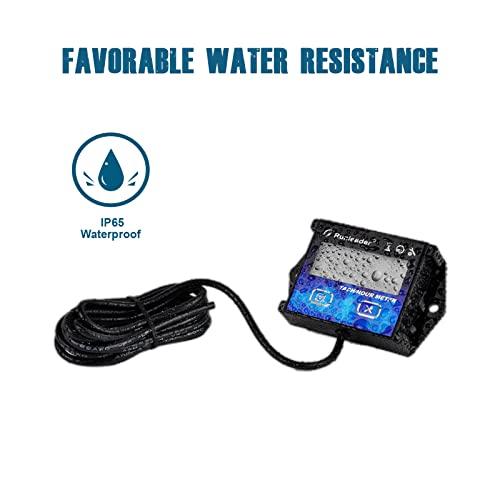

OTHERS ---- Favorable water and shock resistence by whole housing design especially front PC display window and back compartment with O ring sealing; Battery capacity will be kept in good condition with insulation sheet during transport; Replaceable battery compartment and LCD shutdown also can extend the lifetime in vacant time; Reliable technical support and after-sales service (2 years).
