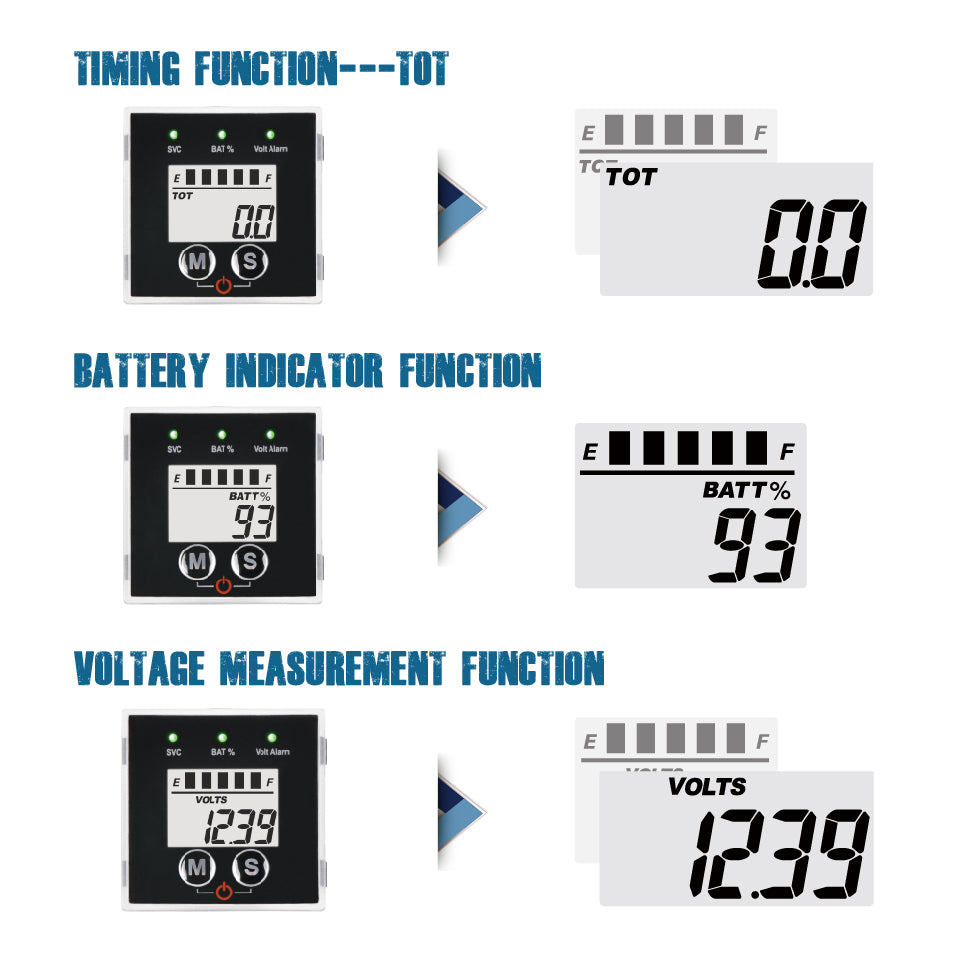

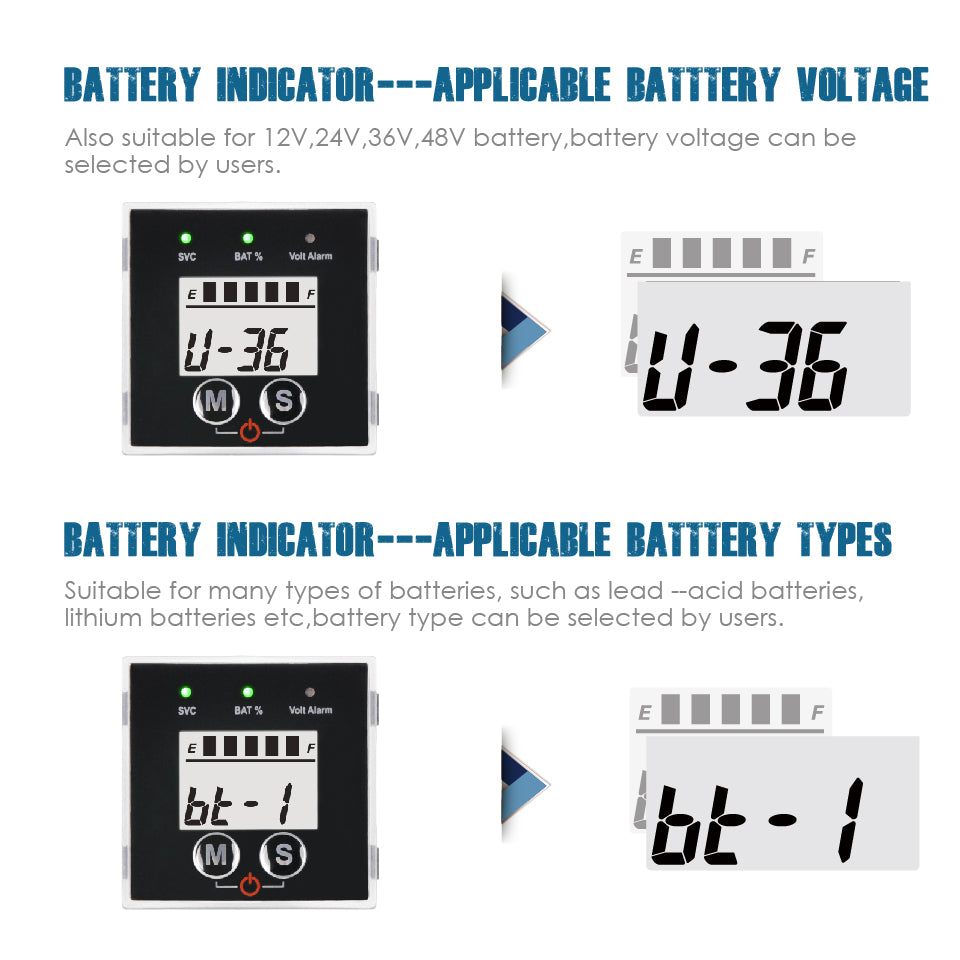

BATTERY STATE OF CHARGE ---- Get an accurate battery power reading during charge or discharge status, which clearly displayed by 10 LED bar and percentage value; Programmable working voltage (12V 24V 36V 48V) and discharge curve (battery type) selection.
DIGITAL HOUR METER ---- Keep tracks of actual running time of engine(TOT), with ability to set a previous time for new meter replacement; Accomplish maintenance at recommend intervals(SVC), determine the time of arrival by related indication light. TOT range:0 to 999,99 hours, SVC timer range: 0 to 2000 hours with OFF function.

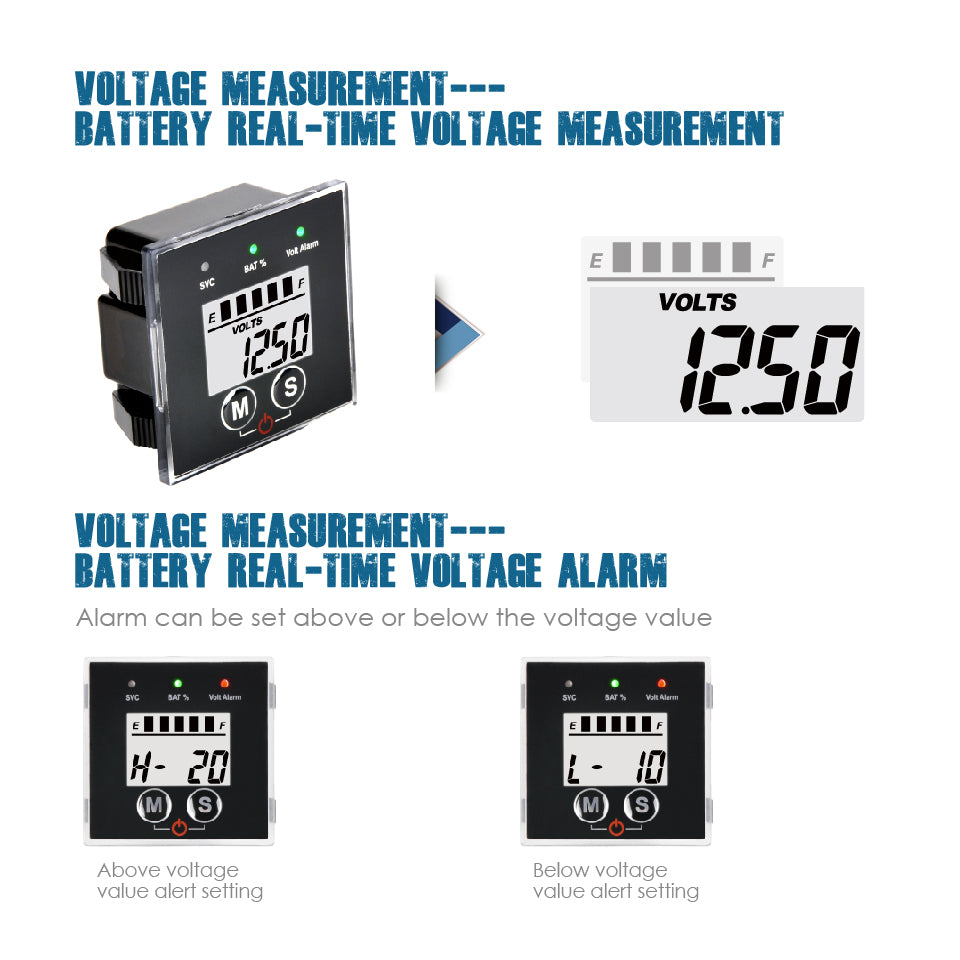

VOLT METER ---- Monitor the constant voltage of the battery, alert the low and high voltage when it exceed. Voltage measurement range: 12V to 48V.

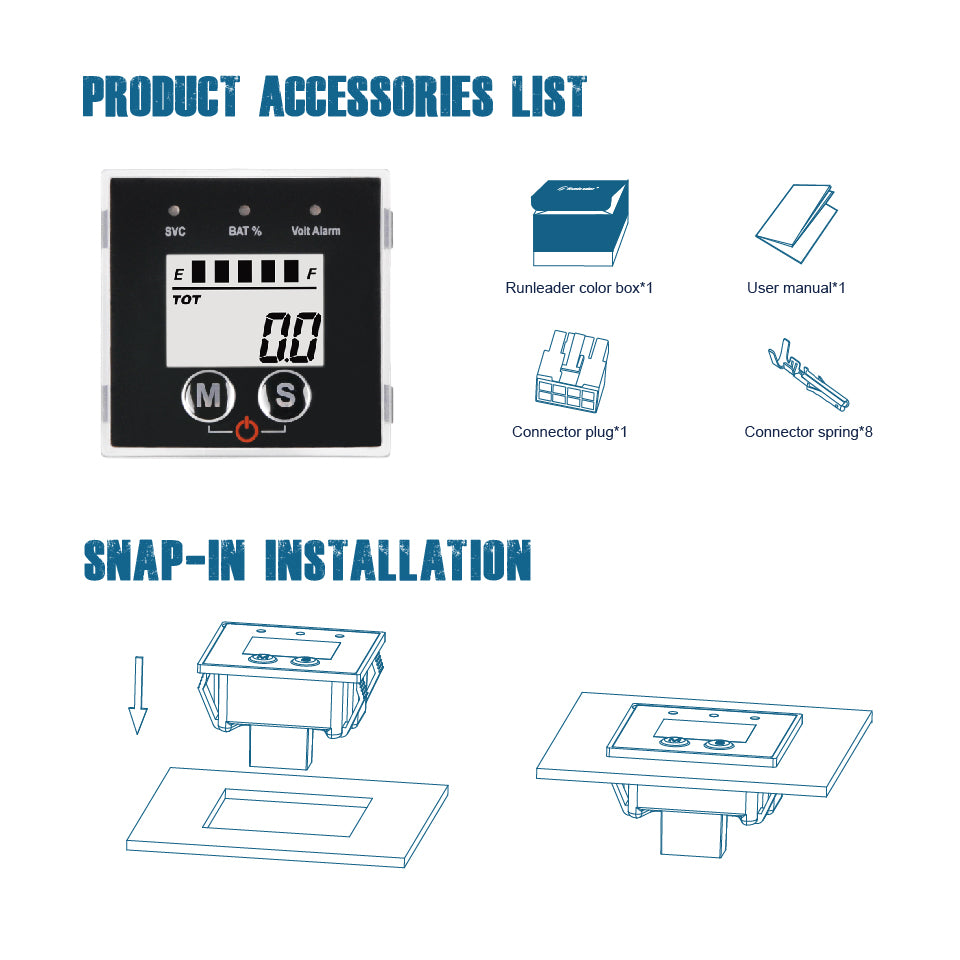

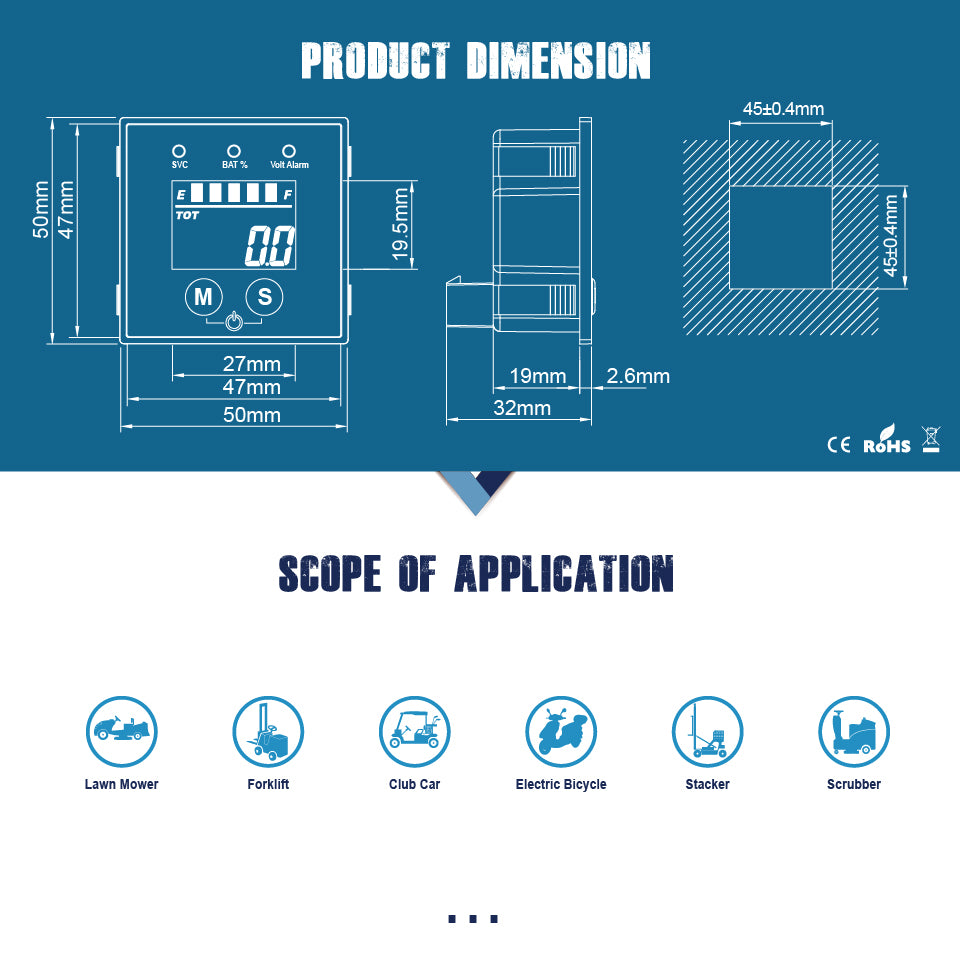

INSTALLATION ---- Easy to mount it by panel cut-out size: φ61mm, the U metal bracket will keep it more stable with cut-out; 8 holes connector will help to link each function for normal working.

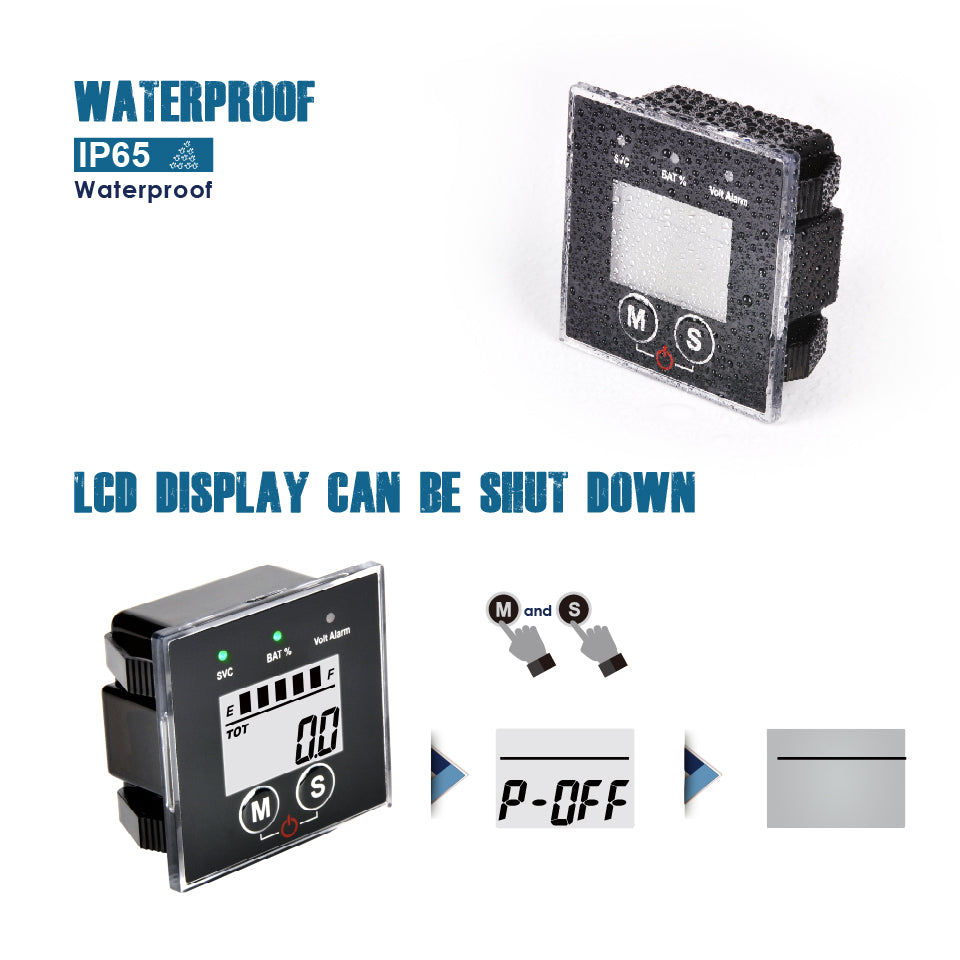

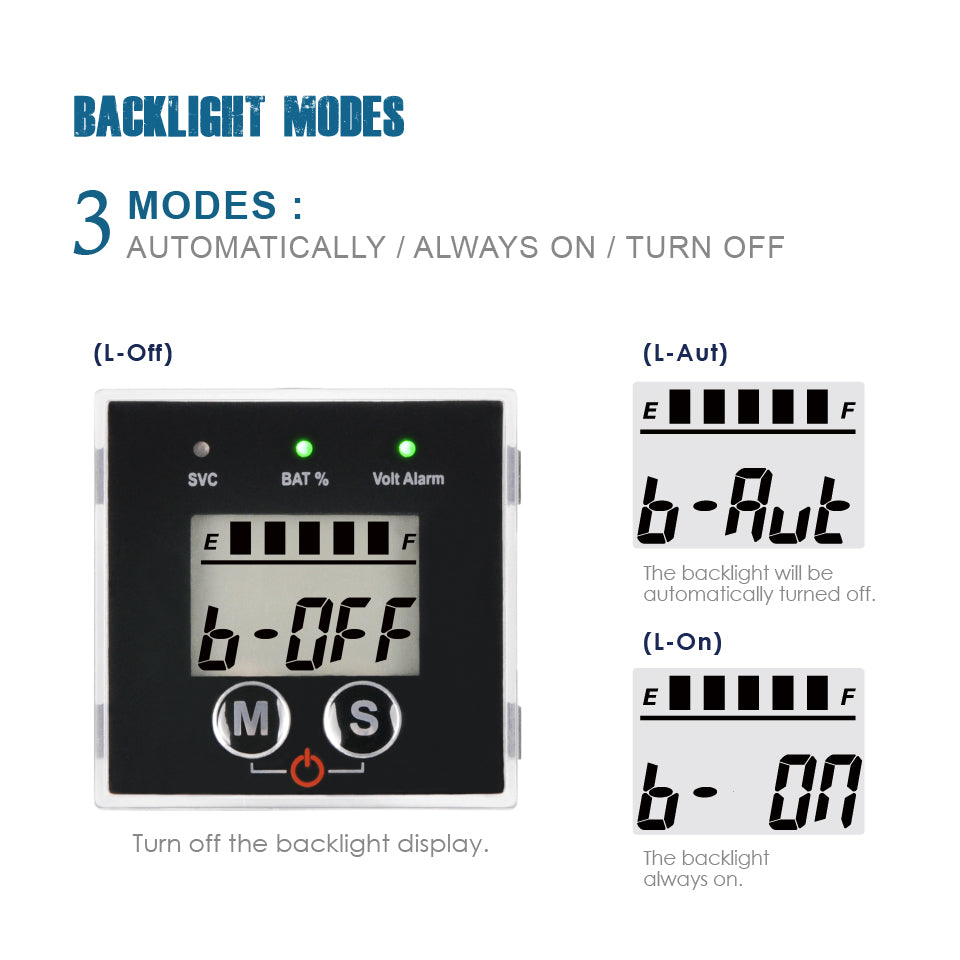

OTHER ---- Backlight display with 3 modes(auto.always and off); User shutdown; Favorable water resistence(IP65); Excellent after-sales and technical support (2 years warranty).
